Medical ARO SLIM S19 SSD Workstation & Eizo MX242W 24.1" 2MP Clinical Monitor
Stock Code:
SS19+MX242W
Stock Code:
SS19+1TB+MX242W
POA
POA
ARO SLIM S19
CPU: Intel® 8th generation Core i5-8400 Quad Core Kabylake 9MB Cache up to 4.00GHz
MAINBOARD: ASUS B360M-C Corporate Server Grade Motherboard 5x Protection II for stability - surge protected networking, overvoltage protection, stable PS, overcurrent protection and stainless steel I/O shield
VGA: Intel HD Graphics 630, Supports up to 3 displays simultaneously via DisplayPort, HDMI, and VGA
Memory: 8GB DDR-4 2400MHz Memory, Supports up to 64GB via 4x DIMM slots, Supports Intel® Optane Memory via M.2
Storage: 250GB M.2 SSD, Supports 2x M.2 2280 (1 x SATA & PCIE, 1 x PCIE x4), 6 x SATA 6Gb/s port/s, HDD; 1TB, 2TB, 4TB
Optical: LG 24X DVD+/-R/RW DVD Burner with software
LAN: Intel® I219V chipset Gigabit 10/100/1000 LAN Controller
Operating System: Microsoft® Windows® 10 Professional 64bit, Intel 8th Gen. Note; does not support Windows 7 or 8 Operating Systems.
Keyboard / Mouse: Logitech KB120 Corded Keyboard and Mouse (Black)
Case / Power: Leader Intel Certified mATX slimline Silver/Black Thermal case. Gold 80+ 300W PSU, Advanced cooling and noise reduction features.
I/O Ports: 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x D-Sub, 2 x DisplayPort, 1 x HDMI , 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 2 (Type-A), 2 x USB 2.0, 3 x Audio jack(s)
Dimensions: 95*280*360mm (W/H/D)
Warranty: 3 Years 4 Hour "Leader Up and Running" Australia Wide Onsite Warranty. 4 Hours is from time call logged during business hours Monday to Friday 9am - 5.30pm in metro areas only

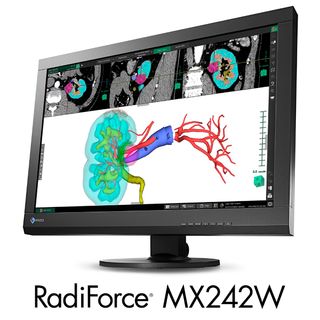

Eizo MX242W
Model Variations: MX242W-BK: with stand, black
Panel
Type: Color (IPS)
Backlight: LED
Size: 61 cm / 24.1"
Native Resolution: 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V): 518.4 x 324.0 mm
Pixel Pitch: 0.270 x 0.270 mm
Display Colors: 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 350 cd/m2
Contrast Ratio (typical): 1000:1
Response Time (typical): 12 ms (black-white-black)
Video Signals
Input Terminals: DisplayPort, DVI-I
Digital Scanning Frequency (H / V): 31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V): 26 - 76 kHz / 49 - 71 Hz
Sync Formats: Separate
USB
Upstream USB 2.0: Type-B
Downstream: USB 2.0: Type-A x 2
Power
Power Requirements: AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption: 31 W
Maximum Power Consumption: 68 W
Power Save Mode: 0.5 W or less
Sensor: Backlight Sensor
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: CAL Switch (DICOM, Custom, CAL, Text)
OSD Languages: English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight: 8.7 kg
Net Weight (Without Stand): 6 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.): CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS: Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DVI-D (3 m), DisplayPort (3 m)
Others: AC power cord (3 m), USB cable (3 m), Utility Disk (RadiCS LE, ScreenManager Pro for Medical, PDF instructions for use, PDF installation manual), instructions for use
Warranty: Five Years
