SYFM LOVET-A30 Vet Elevating Table
Stock Code:
LOVET-A30-5KW
Stock Code:
LOVET-A30-20KW
Stock Code:
LOVET-A30-32KW
Stock Code:
LOVET-A30-40KW
POA
POA
POA
POA
Description

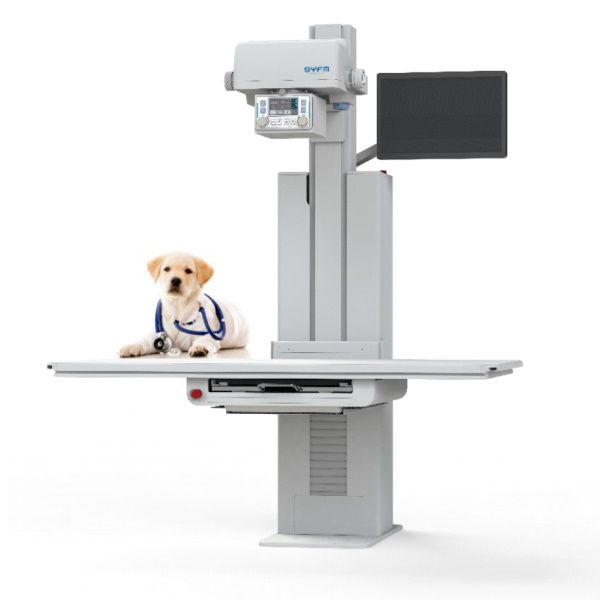

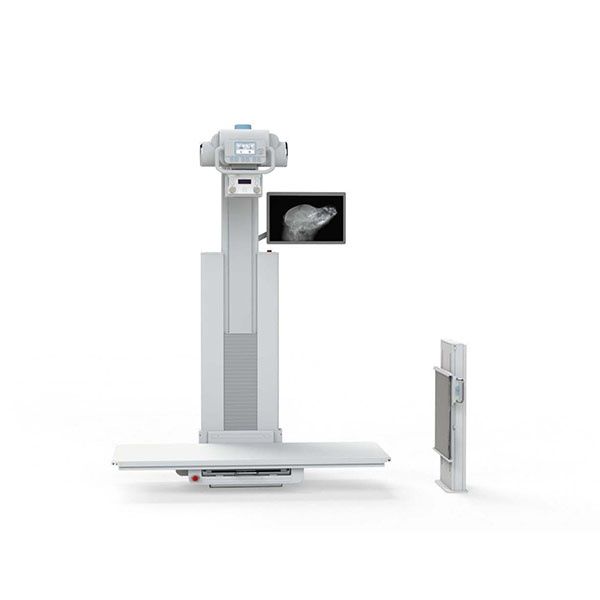

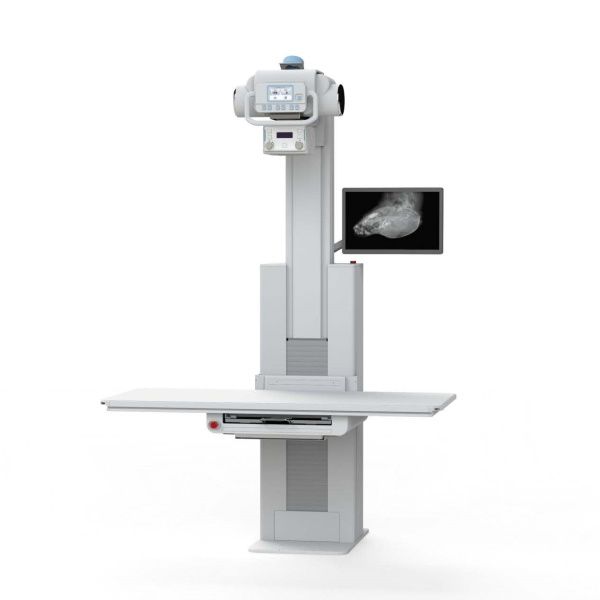

SYFM LOVET-A30 Vet Elevating Table
Designed for vets and specialist and emergency centres to help eliminate lifting heavy dogs and to automate the process of lifting heavy animals. With a 40kW generator and motorised controls, the effort is taken out handling the patients and there is sufficient generator power to eliminate animal movement in x-rays.
Pair this up with Konica DR system or GoDR and the DR flat panel of your choice and you have the ultimate x-ray system for veterinary work.
Key Features:
- Table lowers to within 20cm of the floor and up to a maximum of 81cm
- Excellent for heavy dogs, no lifting required
- Adjustable SID
- Sliding table top with ±325mm travel
- Under table bucky
- Optional standing bucky for weight bearing views
SYFM LOVET-A30 Vet Elevating Table
Generator
Monoblock Maximum Output Power: 5.1kw, 20kw, 32kw
Rotating Tube Maximum Output Power: 32kW, 40kw

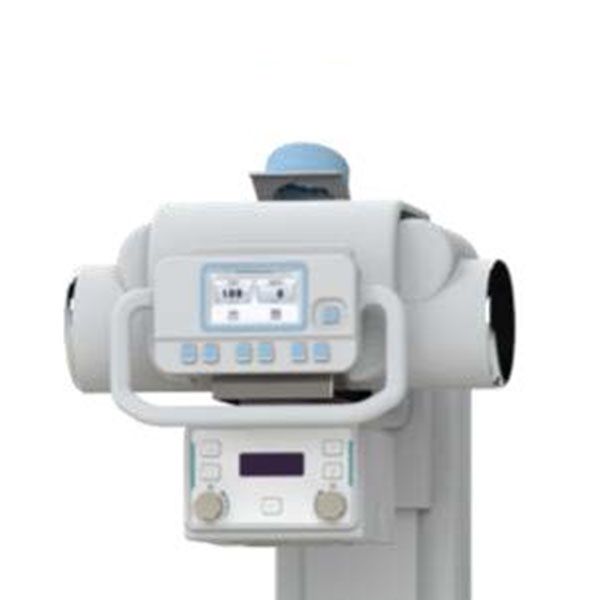

Monoblock Collimator
- LED collimator lamp
- Motorised operation
- 3 Position APR's
- Ultrasonic sensor auto SID measurement

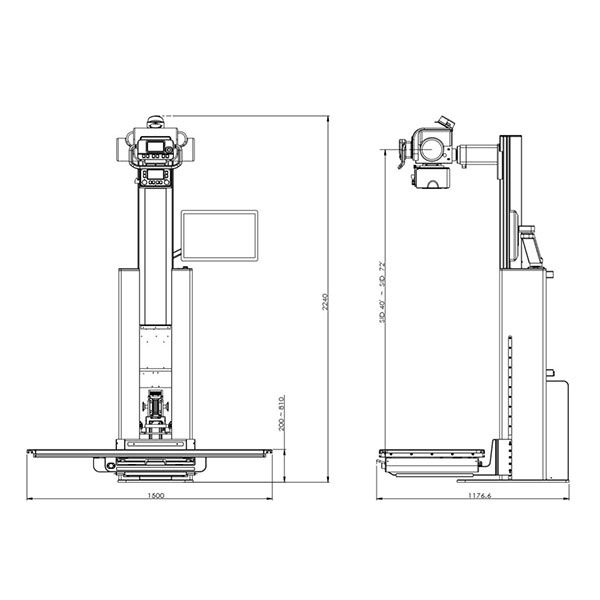

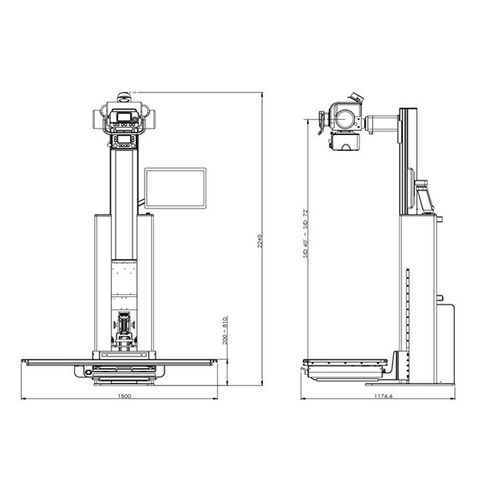

Mechanical
- Table top size: 150 x 60 cm
- Vertical Travel: 20 - 81 cm
- Table top travel: ±325 mm
- Tube rotation: ±90°
- Source to Image Distance (SID): 100 - 180cm (40 - 72")
- Movement: Vertical and Longitudinal axis, motorised
40kW Generator
- Input Power: 120/200-240VAC, 10A 50/60Hz
- Maximum Output Power: 40kW on large focus
- Maximum Output Power: 22.50kW on small focus
- kV Range: 50 - 125kV (1kV steps)
- mA Range: 60 - 500mA
- mS Range: 1 - 6300mS (39 steps)
- mAs Range: 0.4 - 400mAs (31 steps)
Rotating Tube
- Tube Type: Rotating Anode, Small/Large Focul Spot
- Focal Spot: 0.6/1.2
- Angle: 12°
- Maximum Voltage: 150kV
- Maximum Current: 200/500mA
- Heat Unit: 140kHU
