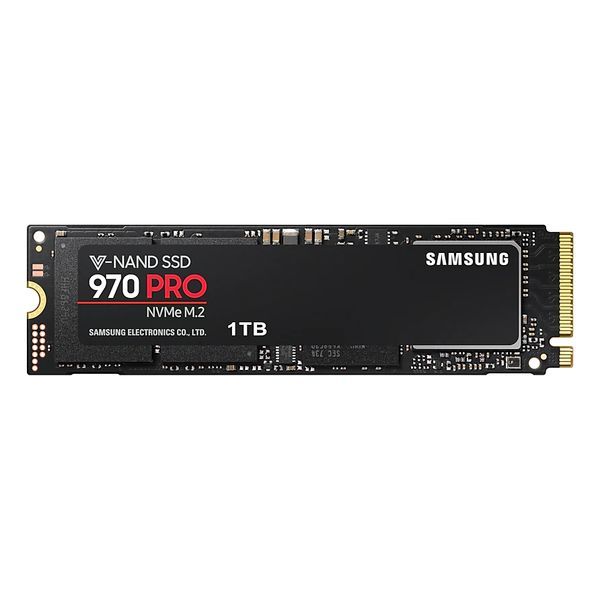

Samsung 970 PRO M.2 1TB
Description
Samsung 970 PRO M.2 1TB
The SSD that goes beyond
Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung's NVMe SSD leadership. Samsung's latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor is designed to surpass the demands of tech enthusiasts and professionals.
Fearless Performance
Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with Samsung's latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds up to 3,500/2,700 MB/s*, approximately 30% faster than the previous generation of Samsung's SSDs.
Exceptional Endurance
Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, helps to achieve 50% greater endurance than the previous generation, all powered by the latest V-NAND technology.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO is designed to enable exceptional heat dissipation. The Dynamic Thermal Guard can automatically monitor and maintain optimal operating temperatures to help minimize performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
- Client Workstations/PCs
Capacity
- 1TB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
- M.2 (2280)
Interface
- PCIe Gen 3.0 x 4, NVMe 1.3
Dimensions
80.15 x 22.15 x 2.38 (mm) (WxHxD)
Weight
Max 8.0 g Weight
Storage Memory
Samsung V-NAND 3-bit MLC
Controller
Samsung Phoenix Controller
Cache Memory
Samsung 512MB Low Power DDR4 SDRAM
Special Features
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
Performance
Sequential Read
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write
Up to 2,300 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)
Up to 250,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)
Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)
Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)
Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)
* Average: 5 W * Maximum: 8 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 C Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Software
Management SW
Magician Software for SSD management
Warranty
5-Year Limited Warrantyor 150 TBW Limited Warranty
