Description

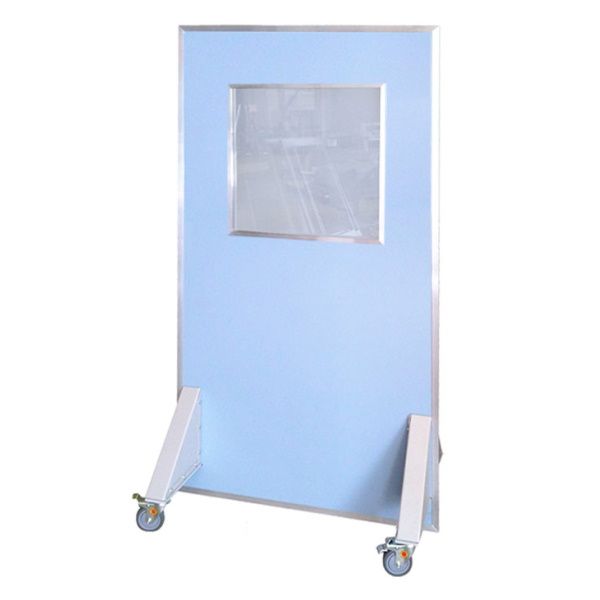

Mobile Lead Barriers / Protective Screens | Various Options
Flexible radiation protection wherever you need it
Move your radiation protection from room to room with these Australian Made mobile lead protective screens. Our mobile protective lead screens are custom made to our client’s specifications. Available with or without viewing panels in up to 2.2mm Pbe lead equivalent and 10mm thick lead glass in standard or custom sizing.
The Mammography and OPG LSPV-1-0-M and LSPV-2-0-M are designed to be lighter and easier to move than the regular LSPV-1 and LSPV2 for Mammography and OPG rooms where only low kV applications are in use.
Created for use around any imaging procedures involving Fluoroscopy, X-Ray, CT, Mammography and OPG, the mobile protective screen can be effortlessly manoeuvred from room to room with its sturdy medical grade lockable castor wheels.
Standard Lead Barriers/Screens with Lead Glass:
Standard Features and Size Options:
- 10mm thick lead glass
- Lead Glass: 2.2mm Pbe
- Lead Sheet: 25kg (approximate depending on barrier size); 2.2mm PbE thick lead sheet
- Non-marking swivel and lockable castor wheels
- Full aluminium surround
- Made in Australia
LSPV-1
- 1920mm x 600mm (H x W)
- Viewing Panel/Window Size: 300mm x 300mm (H x W)
- 10mm thick lead glass
- Lead Glass 1.6mm or 2.2mm Pbe
LSPV-2
- 1920mm x 850mm (H x W)
- Viewing Panel/Window Size: 500mm x 500mm (H x W)
- 10mm thick lead glass
- Lead Glass 1.6mm or 2.2mm Pbe
LSPV-3
- 1920mm x 1200mm (H x W)
- Viewing Panel/Window Size: 500mm x 1000mm (H x W)
- 10mm thick lead glass
- Lead Glass 1.6mm or 2.2mm Pbe
LSPV-4
- Barrier/Screen Size: 1920mm x 1200mm (H x W)
- Viewing Panel/Window Size: 1000mm x 1000mm (H x W)
- 10mm thick lead glass
- Lead Glass 1.6mm or 2.2mm Pbe
LSCU3060
- Large nearly full lead glass
- Overall Size: 1905mm x 851mm (H x W)
- Viewing Panel/Window Size: 1500mm x 750mm (H x W)
- 2.0mm lead equivalent opaque panels of solid, leaded x-ray protection with contoured sides
- 2.0mm lead equivalent high quality Schott leaded glass window for viewing
- Viewing Panel/Window Size: 762mm x 1542mm x 762mm (30" x 60") W x H
- Weight: 102kg
Standard Lead Barriers/Screens without Lead Glass:
Standard Features and Size Options:
- 10mm thick lead glass
- Lead Glass: 2.2mm Pbe
- Lead Sheet: 25kg (approximate depending on barrier size); 2.2mm PbE thick lead sheet
- Non-marking swivel and lockable castor wheels
- Full aluminium surround
- Made in Australia
LSBP
- Overall Size: 1500mm x 600mm (H x W)
- No viewing panel
- Non-marking swivel and lockable castor wheels
- Full aluminium surround
LSPV-3-C
- 1920mm x 1200mm (H x W)
- No viewing panel
- 10mm thick lead glass
- Lead Glass 1.6mm or 2.2mm Pbe
LSAC
- Viewing panel in customised sizes with 12mm thick 0.5Pb lead equivalent acrylic glass
- Powder coated steel frame
- Made to order in any (reasonable!) custom size
Mammo/OPG Suitable
Standard Mammo/OPG Lead Barriers/Screen Features and Size Options:
- 10mm thick lead glass
- Lead Glass: 2.2mm Pbe
- Lead Sheet: 6kg (approximate); 0.45mm Pbe
- Non-marking swivel and lockable castor wheels
- Full aluminium surround
- Made in Australia
LSPV-1-0-M
- Overall Size: 1920mm x 600mm (H x W)
- Viewing Panel/Window Size: 300mm x 300mm (H x W)
- 10mm thick lead glass
- Lead Glass 2.2mm Pbe
- Lead Sheet 6kg (approximate); 0.45mm Pbe
LSPV-2-0-M
- Overall Size: 1920mm x 850mm (H x W)
- Viewing Panel/Window Size: 500mm x 500mm (H x W)
- 10mm thick lead glass
- Lead Glass 2.2mm Pbe
- Lead Sheet 8kg (approximate); 0.45mm Pbe
