GoDR Vet Acquisition Software
GoDR™ is an X-ray image processing and acquisition software developed by SmartCareworks Inc. It is compatible with a wide range of industry leading X-ray detectors and generators. The equine package comes in a waterproof storage case, with space for the detector in Podoblock Cowboy box, laptop, charger for the DR panel and laptop, markers and other loose items.

GoDR™ is the most innovative software to acquire and process digital x-rays images. With veterinary specific features such species and integrated dental option such as tooth picking and full mouth series, all your x-ray capability is in one place. You can easily upgrade your current software to GoDR! You just need to check the compatibility list with us and your done!

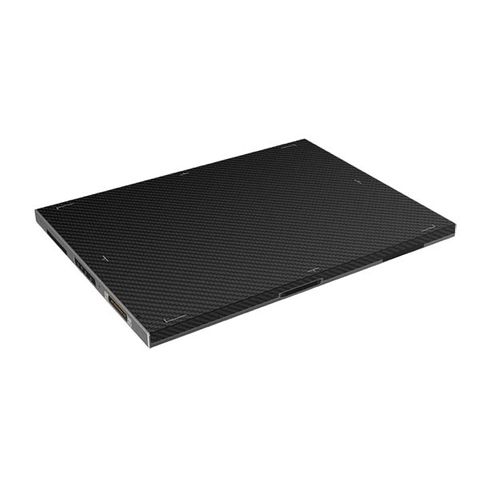

iRay Luna 1012X Flexible Flat Panel Detector
Luna 1012X is a new generation, high-performance 10×12-inch wireless FPD developed on a flexible substrate. It features a 100 µm pixel pitch with direct deposition CsI. The cutting-edge flexible panel technology, features a strong, yet lightweight design with IP67 ingress protection, in-tray battery charging, and reliable, low power AED.

Key GoDR Features:
- Vet specific interface
- Full touch screen
- Vet specific tools such as TTA, TPLO
- Easy procedure mapping allowing common sequences to be easily built
- Integrated dental tooth picker and Full Mouth Series with otional dental scanner
- Full integration with mutlpile DR Flat Panel Detectors

Key iRay DR Flat Panel Detector Features:
- Wireless cassette detector per ISO 4090, fits in bucky
- Full AED control, exposure at any time
- Best-in-class 100 µm pixel pitch with 16-bit ADC
- Large capacity battery design, with 8+ hours battery life
- Lightweight design with IP67 ingress protection
- Supports a fast workflow for a better user experience
- Flexible panel substrate for ultimate strength
- Direct deposition Csl, with excellent DQE at all frequencies

GoDR iRAY Luna X 10x12" Equine DR System

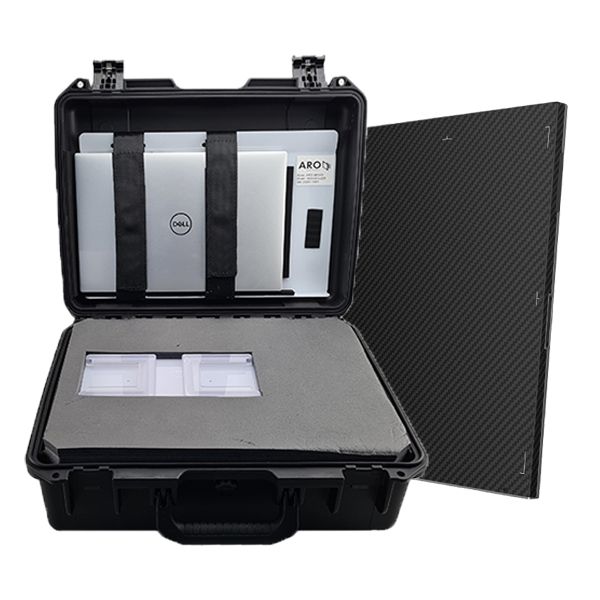

Equine DR Case

Case: Fully waterproof hard case
Inside the case: DR Detector with Podoblock Protection Box, Laptop and Marker and Accessory storage

iRay Luna X 10x12 Panel

Detector Technology: Flexible
Scintillator: CsI
Active Area (inch): 10 × 12
Pixel Matrix: 2502 × 3152
Pixel Pitch (µm): 100
Resolution (lp/mm): 4.3
AD Conversion (bit): 16
Battery Autonomy (h): 8.5
WIFI: 2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode: AED (optional) / Software
Full Image Time (s): 4.5
Dimension (mm): 269 x 362 x 15
Weight (kg): 2
Static Loading (kg): 300 Uniformly
Ingress Protection: IP67
Operating Temperature (C): 10~35
Storage & Transport, Temperature with Package: -20~55
Operating Humidity (% RH): 5~90 (Non-Condensing)
Storage & Transport, Humidity with Package (% RH): 5~95 (Non-Condensing)

XPS 15

Processor: 10th Generation Intel® Core™ i7-10750H (12MB Cache, up to 5.0 GHz, 6 cores)
Operating System: Windows 10 Pro (64bit) English
Video Card: NVIDIA® GeForce® GTX 1650 Ti 4GB GDDR6
Memory: 16GB DDR4-2933MHz - 2x8G
Hard Drive: 1TB M.2 PCIe NVMe Solid State Drive
Display: 15.6" UHD+ (3840 x 2400) InfinityEdge Touch Anti-Reflective 500-Nit Display
Color Choice: Platinum Silver with Black Carbon Fiber Palmrest
Security Software: McAfee® LiveSafe™ 12 month Subscription
Keyboard: Black Backlit Keyboard (US-International) with Finger Print Reader
Wireless: Killer™ Wi-Fi 6 AX1650 (2x2) and Bluetooth 5.1
Power Supply: Black 130W Type-C Power Adapter
Primary Battery: 6-Cell Battery, 86WHr (Integrated)

Ports & Slots
- 1x USB-C 3.1 with power delivery & DisplayPort
- Full size SD card reader v6.0 | 3. 3.5mm headphone/microphone combo jack
- Wedge-shaped lock slot
- 2x Thunderbolt with power delivery & DisplayPort
- USB-C to USB-A v3.0 & HDMI v2.0 adapter ships standard

Dimensions & Weight
- Height: 18 mm (0.71")
- Width: 344.72 mm (13.57")
- Depth: 230.14 mm (9.06")
- Starting weight*: 1.83 kg (4 lbs.) for non-touch with 56Whr battery; 2.05 kg (4.5 lbs.) for touch with 86Whr battery
