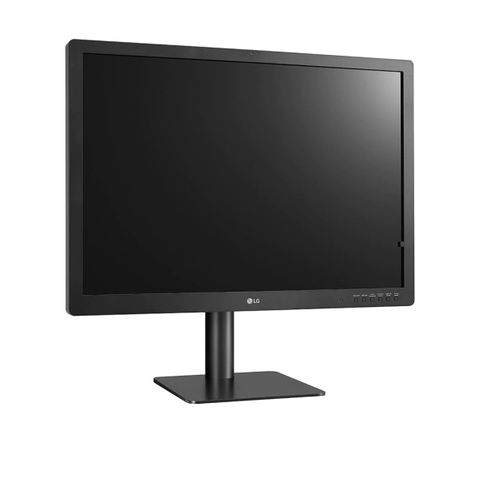

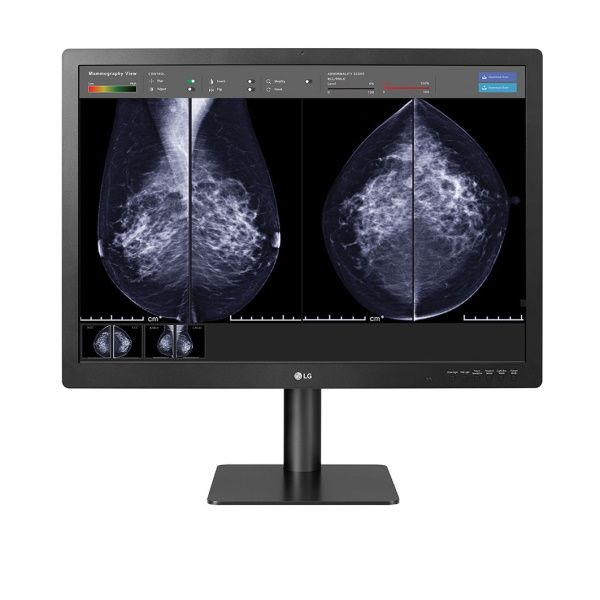

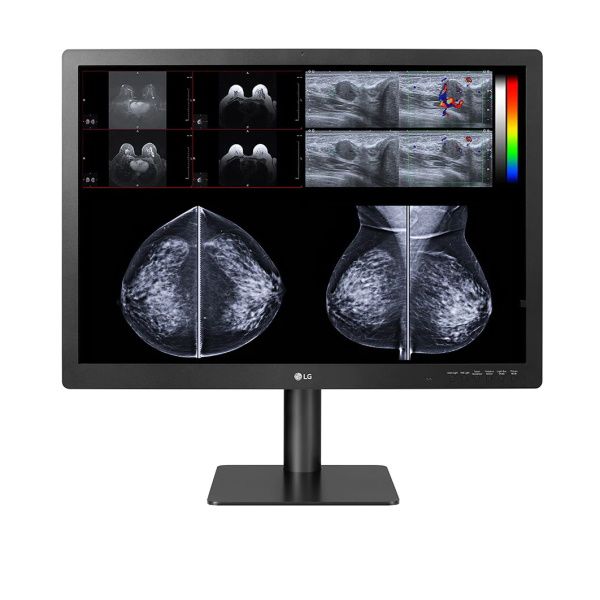

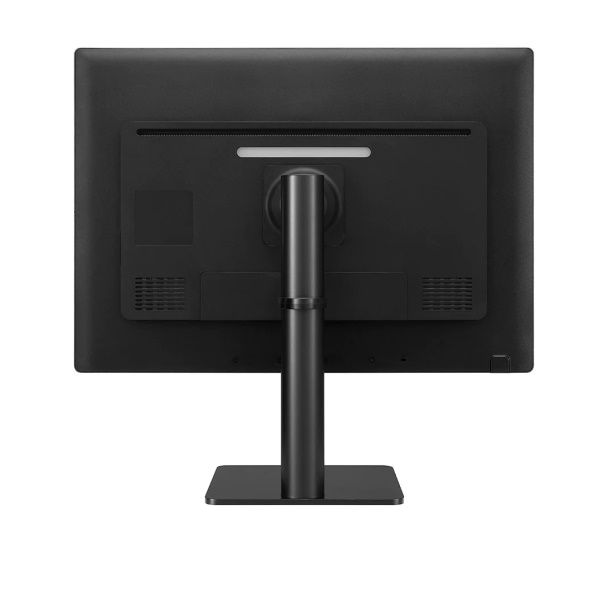

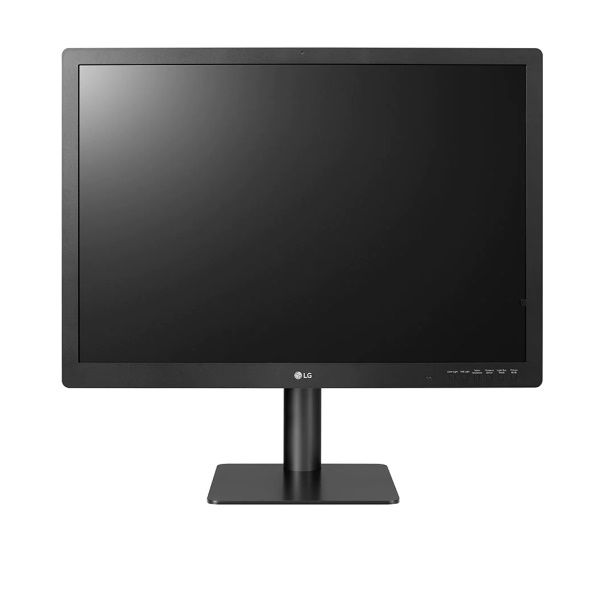

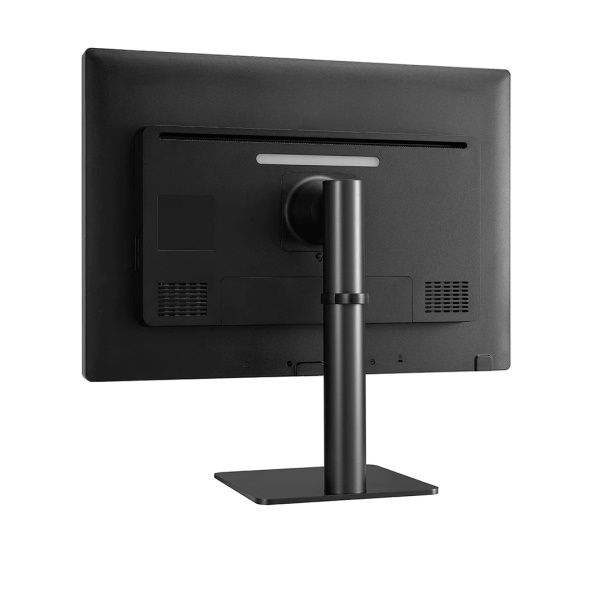

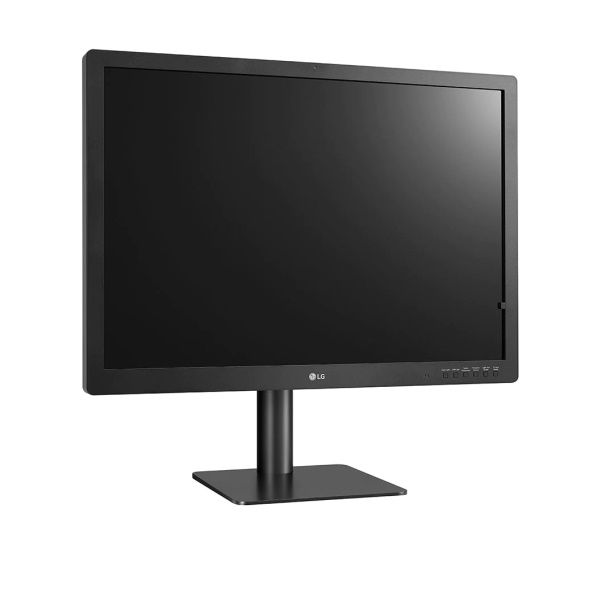

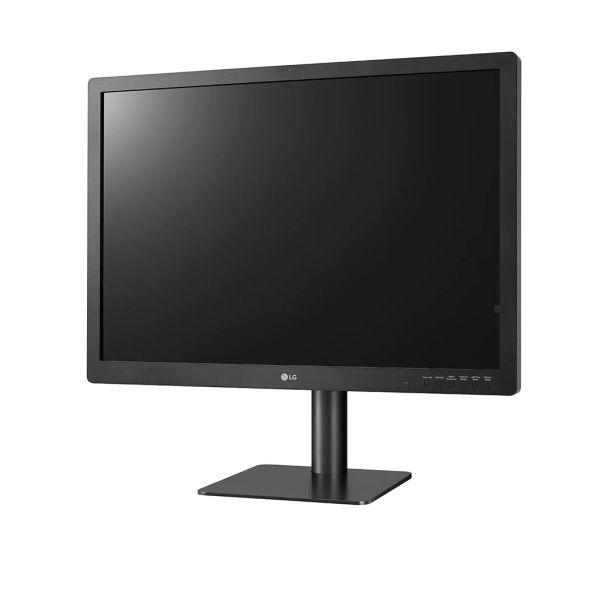

LG 31'' 12MP Diagnostic Review Monitor for Mammography

Stock Code:
31HN713D-BA
POA

Description

LG 31'' 12MP Diagnostic Review Monitor for Mammography


31" 12MP (4200x2800) IPS Diagnostic Monitor for Mammography with Multi-resolution Modes, Pathology Mode, Self-calibration, Focus View, PBP and Dual Controller

Key Features:
- 31-inch 12MP (4200x2800) IPS Display
- Multi-resolution Mode (12/6MP)
- 1080 cd/m2 (Typ.)
- Pathology Mode, Focus View Mode
- Lighting (Down/Wall Lighting)

Accurate Imaging


Multi-resolution Mode Compatible with Every Device
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 31HN73D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
pathology mode offering imaging results as detailed and accurately colored as seen under a microscope
Pathology Mode
True-to-Life Color Reproduction
In Pathology Mode, the 31HN713D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

Self-calibration Consistency in Medical Images
The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

Streamlined and Efficient Workflow


Presence Sensor Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 31HN713D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.

Auto Luminance Sensor Reducing Eye Strain
LG 31HN713D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

Focus View Fully Focus on the Important part
LG 31HN713D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image for a more accurate and efficient diagnosis.

More Ergonomic and Comfortable to Review


Down Lighting & Wall Lighting Optimal Reading Condition
Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

6 Hot Keys Intuitive Control
The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.

Ergonomic Design Easy and Comfort
The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work. One-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel.

Read a review on the new LG 32" 12MP Monitor:
Click here to read more about how LG expands its diagnostic medical monitor line with new 12-megapixel Multimodality Display

LG 31'' 12MP Diagnostic Review Monitor for Mammography


Display
- Resolution: 12MP (4200 x 2800)
- Size: 31-inch (3:2 Aspect ratio)
- Type: Colour

Panel
- Panel Type: IPS
- Surface Treatment: Anti-glare, 3H
- Colour Gamut: (Typ.) sRGB over 97% (Coverage)
- Viewing Angle: (CR=10) 178° (Right/Left)/178° (Up/Down)
- Brightness (Typ.) 1080cd/m²
- Contrast Ratio: (Typ.) 1500:1
- Pixel Pitch: 0.1554mm x 0.1554mm
- Response Time: GTG* 14ms (Off-setting), GTG 5ms (Faster-setting)
* GTG: Gray to gray response time.
** Specifications may vary by region and all features, standards, and other products specifications are subject to change without notice or obligation.

Features
- DICOM Compliant: Yes
- HW Calibration: Yes (PerfectLum) with Internal Front Sensor
- Brightness Stabilization: Yes
- Brightness Uniformity Correction: Yes
- Display Mode: Multi-resolution Mode (12/6MP), Pathology Mode, Focus View Mode

Video Signal
- Input Terminals DisplayPort x 2

Connectivity
- USB 1 upstream, 3 downstream

Power
- AC Input: 100-240 Vac, 50/60 Hz
- Power Consumption (Max.) 180W
- Power Consumption (DC Off) Less than 0.3W

Certifications & Standards
- Certifications & Standards EC (IEC 60601-1/IEC 60601-1-2), EN (EN 60601-1/EN 60601-1-2), IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035), IEC (IEC 60950-1/IEC 55032, 55024), cUL (ANSI/AAMI ES 60601-1, EN (EN 60950-1/EN55032, 55024), CSA CAN/CSA-C22.2 NO. 60601-1), FCC (FCC part 15 Class A), FDA (510 (k) (Class II)), RoHS, REACH, WEEE

User Convenience
- PBP: Yes (2PBP)
- Reader Mode/Flicker Safe: Yes (Text Mode)/Yes
- Lighting: Yes (Down/Wall)
- Presence Sensor: Yes
- Auto Luminance Sensor: Yes

Physical Specifications
- Weight (With Stand): 14.0kg (30.9 Ib)
- Borderless Design: Normal

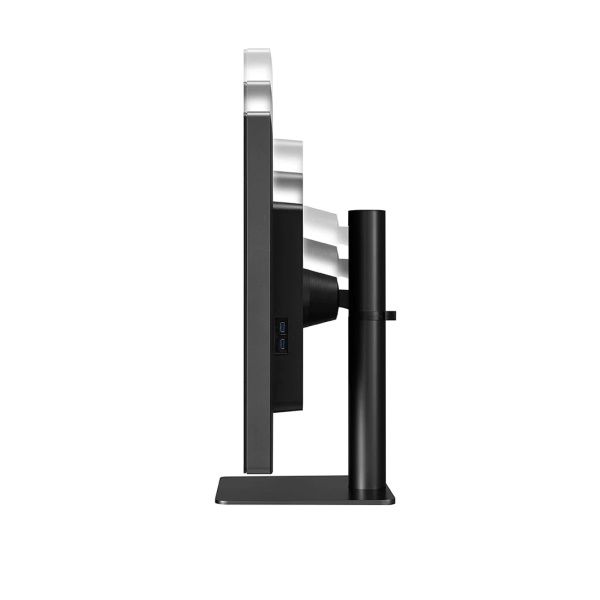

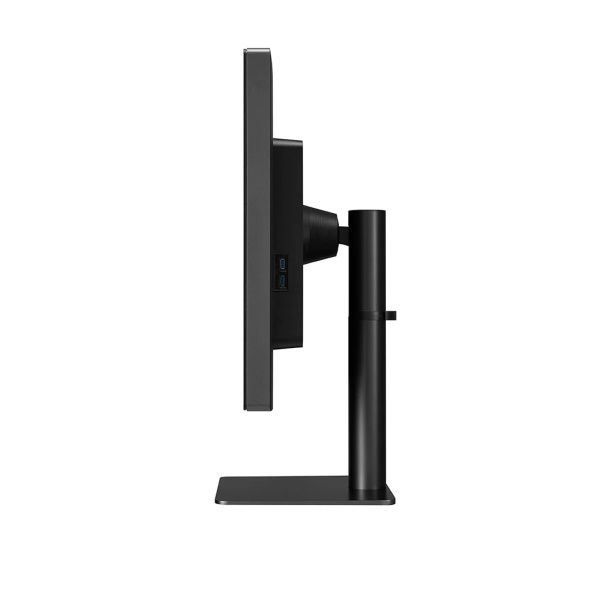

- Adjustable Stand Swivel: ±15°, Tilt: -5-15°, Height Range: 110mm
