NSE UC-100 USB Endoscopic Camera System
Stock Code:
NSE-UC100
POA
Description
NSE UC-100 USB Endoscopic Camera System
Just plug in and play.
Endoscopic camera system is a common equipment for endoscopic and minimally invasive surgery. However, a traditional endoscope camera system is generally bulky, which is not convenient for the occasions with high mobility requirements, such as travelling, bedside examination and field medical treatment. With the implementation of multi-location practice, the demand for portability has been increased.
The USB FHD endoscopic camera system is aiming to meet the above requirements. It is an originally designed product integrating lighting, imaging, control and patient management, featuring with high performance and high portability. This product meets the requirements of soaking disinfection, low temperature plasma and glutaraldehyde sterilization. When used, simply connect with the computer USB3.0 interface, you can achieve endoscopic surgery, examination and recording. With the integrated solution of surgical video recording and broadcasting, synchronous video transmission can be realized and DICOM compliance can be met.
Extremely high definition, fine discernibility
Full HD imaging, showing crystal clear endoscopic detail. Optional configuration: image sensor of Global shutter, which can be use with Stroboscope.
Highly integrated, light weight and portable
Integrated with imaging, light source in the handle, diagnosis and treatment can be realized by a simple connection to USB3.0 port of a computer.
Waterproof design, worry free for sterilization
IP58 Dust-protected, protected against the effects of continuous immersion in water (Maximum immersion depth and time: 1m, 1 hour), support routine sterilization operation (soaking, low temperature plasma and glutaraldehyde)
NSE UC-100 USB Endoscopic Camera System
- Resolution: Full HD, 1920 x 1080p,
- Sensor Type: CMOS image sensor (global shutter)
- Interface: USB Type C
- Optical Interface: C-Mount
- Splash/Water Rating: Waterproof IPX8
- Light Source: 2W LED integrated light source interface
- Software: MediCam Patient Management Software with DICOM Store

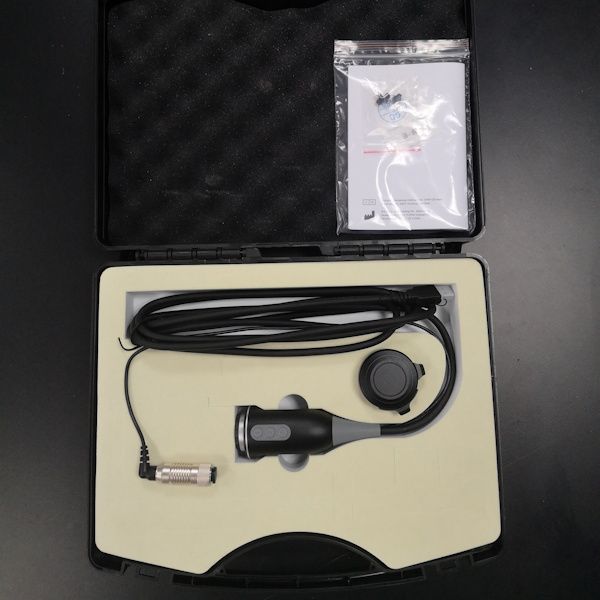

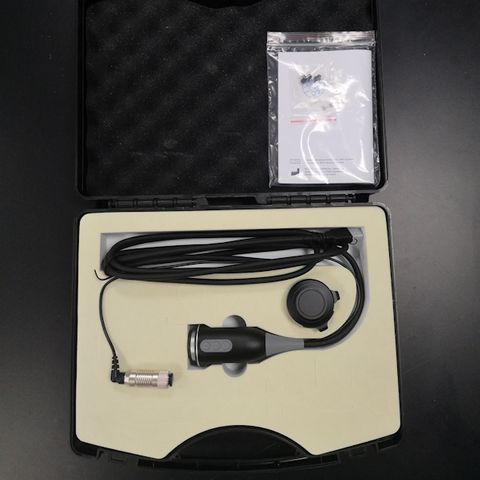

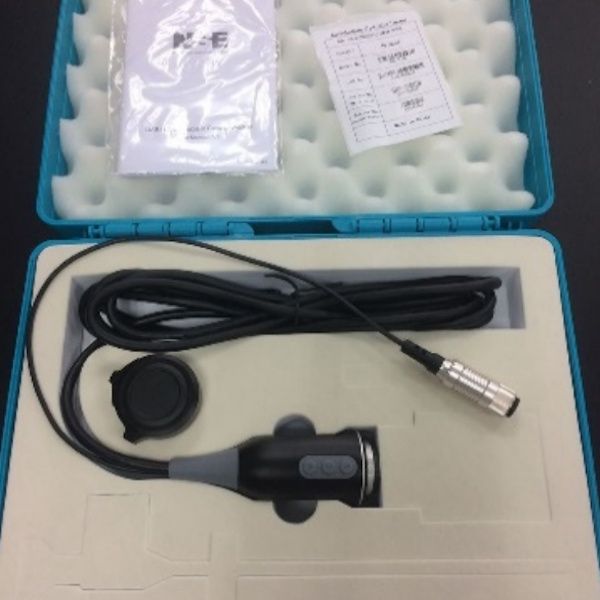

In the box:

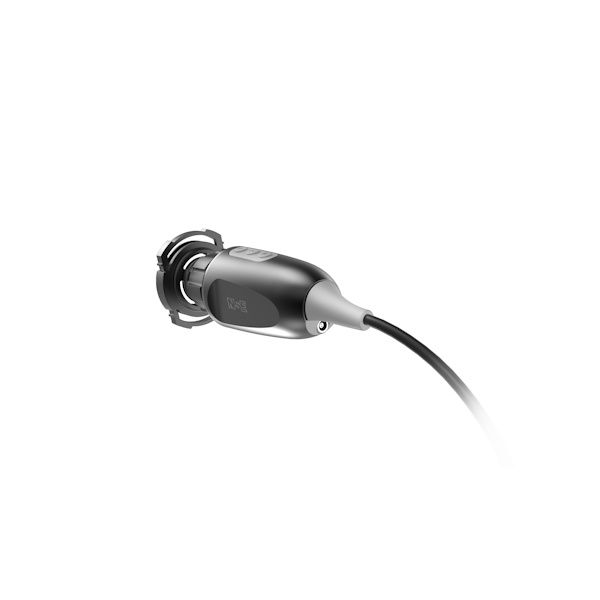

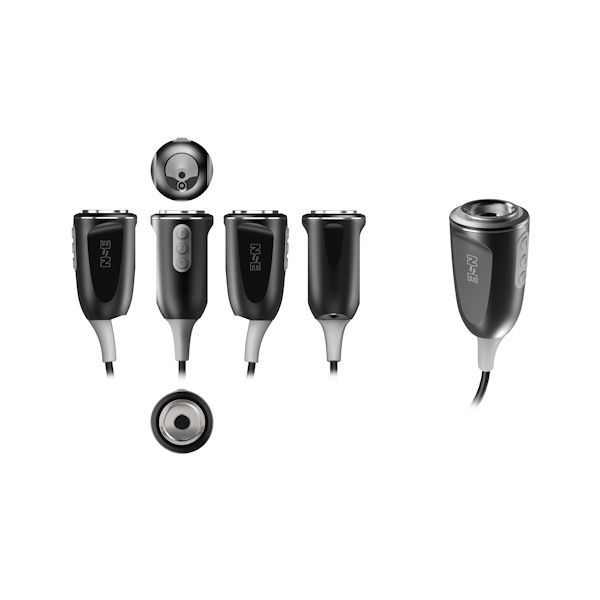

- Camera head
- MedCam Software: Windows, Mac OS X versions available, with patient's information management system, DICOM setting interface, report generation
- L301-A Mini LED Light source (2 Watt, 282,000lux)
- 110213046 Regular optical adapter (F28mm)
- 113102030 Light conection convertor
- 2 year parts only return to base warranty
