ARO Shuttle DH810 Workstation
Stock Code:
ARO-SHTL-DH810-I5-DD-500GB+1TB
Stock Code:
ARO-SHTL-DH810-I7-DD-500GB+1TB
Description

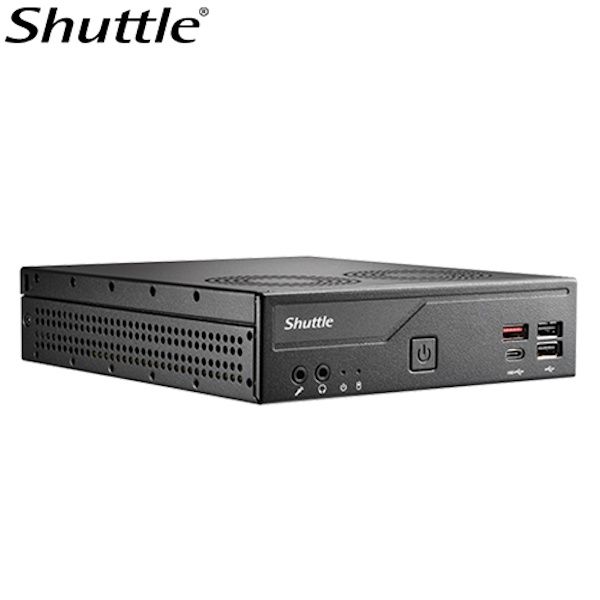

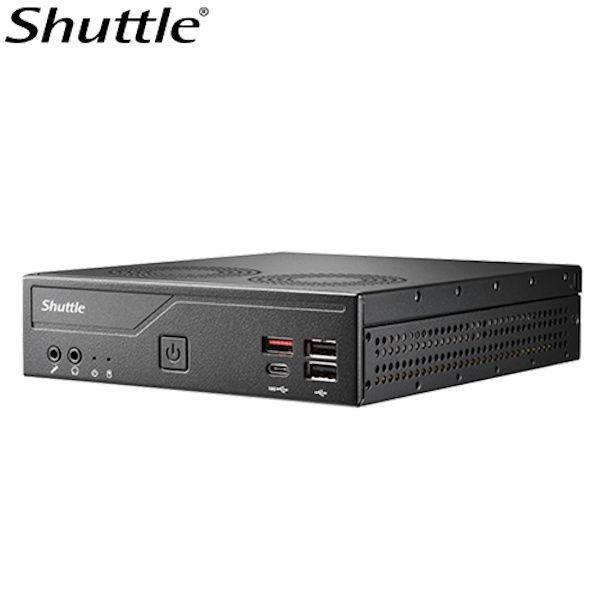

ARO Shuttle DH810 Workstation
As a super compact workstation with dual ethernet ports, this is suitable for very specific tasks such as supporting our GoDR Acquisition Solution, other DR Workstations and other applications. Available with multiple drive configurations.
Experience the 15th Gen Power Full-sized PC Performance in a tiny footprint
Shuttle XPC Slim series DH810 supports Intel® 15th Gen LGA1851 processors. With Intel® Core™ Ultra 200 series, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.1, two display port (includes 1 form USB 4.0 port) for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including 4x USB 3.2 Gen2 (Including one Type-C), 2x USB 3.2 Gen1, 2x USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH810 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

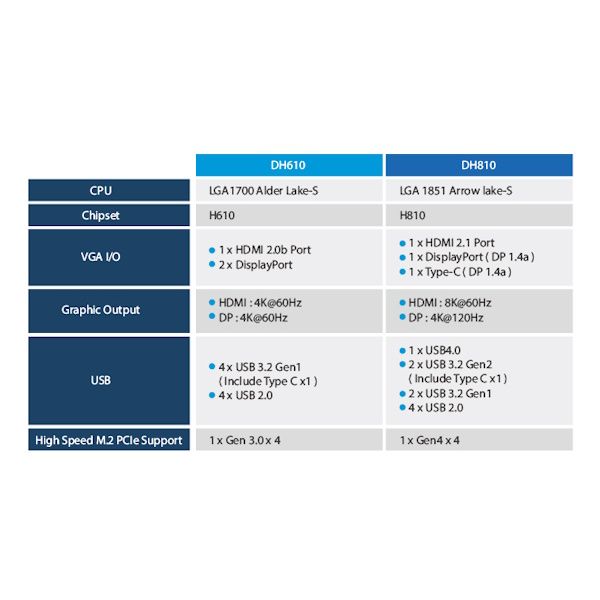

Intel® 15th Gen Processor
Equipped with the H810 chipset which is optimized for Intel® Core™ Ultra LGA1851 processors (Arrow lake-S), DH810 offers accelerated hybrid computing performance, with a remarkable 3.5X increase in AI capabilities compared to the previous generation, making it ideal for tasks requiring high processing power, such as data analysis and multimedia applications
Swift DDR5-5600 Memory Support
The DH810 features dual DDR5 memory slots, supporting speeds of up to 5600MHz, ensuring a smooth workflow and enhanced overall system responsiveness
- Maximum capacity of up to 96GB (48GB per slot)
- Fast data processing capabilities at 1.1V, improving power efficiency
Triple-Display Productivity
With one HDMI 2.1 and two display port (includes 1 form USB 4.0 port) outputs built-in, DH810 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
The DH810 offers multiple expansion solutions that enable swift data access and enhance connectivity options, catering to diverse application needs
- 1 x M.2 2280, M key slot for PCIe Gen 4x4 or SATA 6Gb
- 1 x M.2 2230, E key slot for PCIe Gen 3x1, USB2.0, Intel CNVi module or Wlan-M module
Rich Connectivity and High-speed Intel® 2.5GbE LAN
DH810 provides four USB 3.2 Gen2 (Including one Type-C), 2x USB 3.2 Gen1, 2x USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support 10/100/1000 Mb/Sec and supports wake ON LAN (WOL) feature.
Reliable Performance

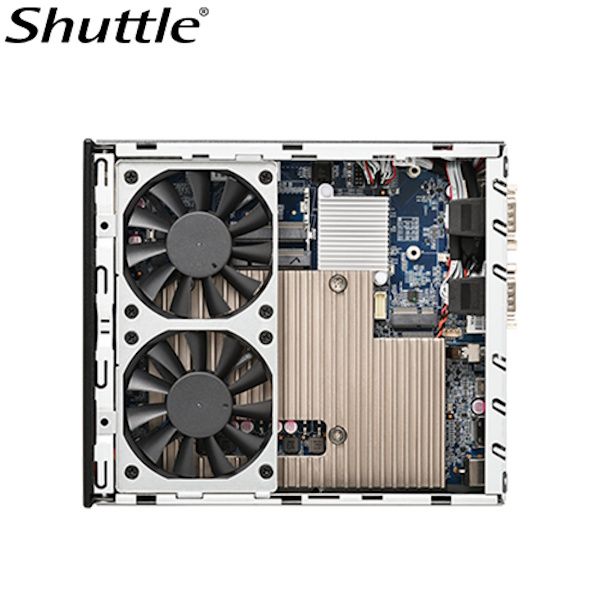

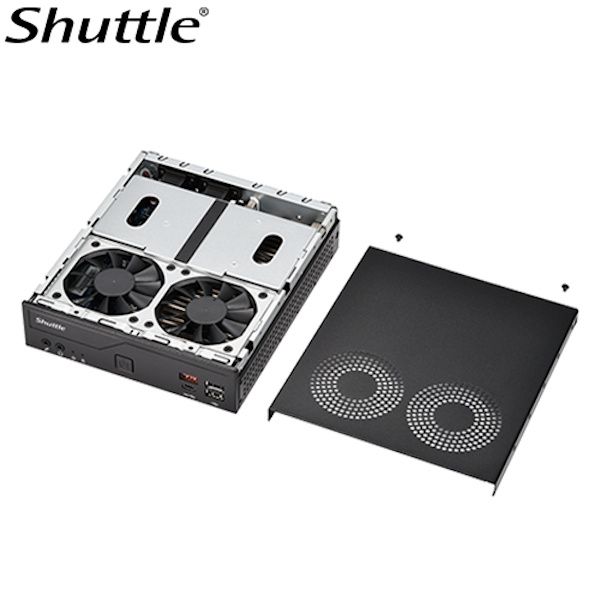

Shuttle’s exclusive heat pipe cooling technology ensures 24/7 stable operation in environments ranging from 0 to 50°C
VESA Mount-Ready
The DH810 Supports VESA mounting standards of 75x75 and 100x100, allowing easy installation on walls or behind displays, perfect for space-constrained environment.
BIOS and Utility Features
Power features include Wake on LAN, Power-On After Power Failure, RTC Power-on, Watch Dog, and Auto Power on
The Watchdog
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.
Operating System Support
- Windows 11 64bit
- Linux
Click here for Warranty Information
ARO Shuttle DH810 i7 Workstation
FORM FACTOR
- 1.3L chassis
PROCESSOR
- Intel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W
CHIPSET
- Intel H810 Express chipset
MEMORY
- 2 x DDR5 16GB SODIMM slots, (Max. 48GB per DIMM, max 96GB)
- Up to DDR5 5600 MHz
VIDEO OUTPUT
- 1x HDMI 2.1 (TMDS)
- 2x DP (Include 1 form USB 4.0 port)
- Triple video outputs
- 4K playback (Dual channel memory recommended)
- Integrated in CPU
AUDIO
- Realtek ALC 888S High Definition Audio
ETHERNET
- (1) Intel 2.5GbE LAN
- (1) Intel 1GbE LAN
- Supports 10/100/1000 Mb/Sec.
- Support wake ON LAN (WOL) feature
STORAGE INTERFACE
- SATA 6.0Gb/s interface
- NVMe interface
- Support SATA RAID 0,1
ONBOARD CONNECTORS
- 1x 4pin fan connector
- 1x VGA(For PVG01 use)
- 1x 1x4 pin USB header(For WWN03 use)
- 1x SATA connector w/power
- 1x Front audio header
- 1x Auto power on header
- 1x RS232 voltage switch

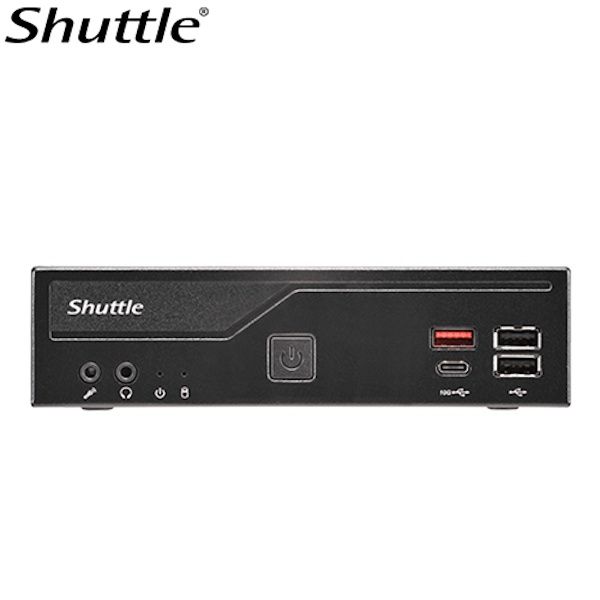

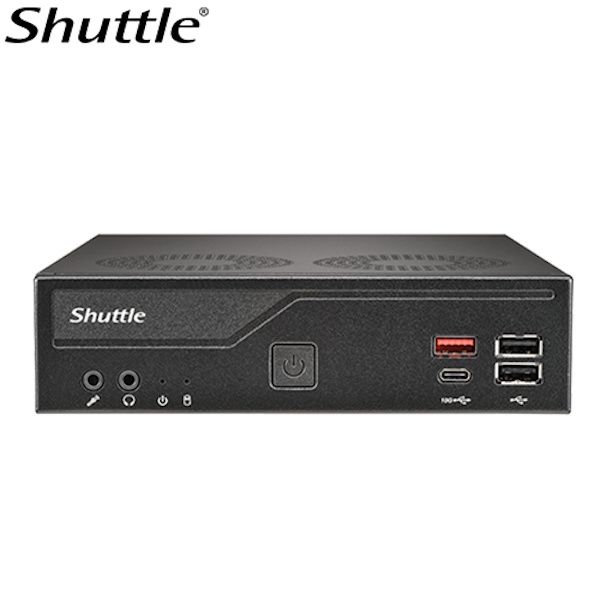

FRONT PANEL
- 2x USB 3.2 Gen2 ports (Include 1 Type-C)
- 2x USB 2.0
- 1x Microphone-In
- 1x Line-Out
- 1x Power-On button
- 1x Power LED
- 1x HDD LED

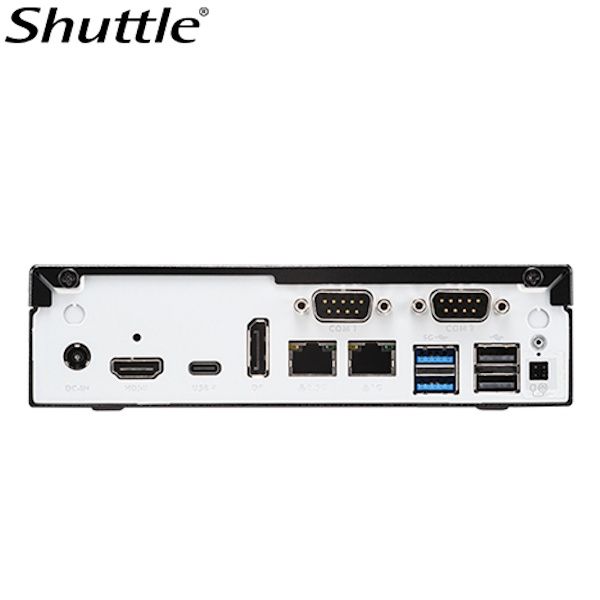

BACK PANEL
- 2x RJ45 LAN port w/LED (2.5G
- 1x HDMI port
- 1x Display port
- 2x USB 3.2 Gen1 ports
- 2x USB 3.2 Gen2 ports
- 1x USB 4.0 (20G, Type-C, with DP)
- 1x RS232
- 1x RS232/RS422/RS485
- 1x External 4pin header
- 1x DC-in
- 1x Kensington lock
DRIVE BAYS
- 1x 2.5" HDD / SSD bay
DIMENSIONS
- 190(L) x 165(W) x 43(H) mm
POWER
- 120W Power Adapter
- Input:100 - 240V AC
- 19V 6.32A
ACCESSORIES
- XPC multi-language Quick User Guide
- XPC DVD Driver
- VESA mount
- VESA Screw pack
- Power cord
- Thermal Grease
- HDD Screw pack
- 120W adapter
EXPANSION SLOT
- 1 x M.2 2280, M key slot for PCIe Gen 4x4 or SATA 6Gb
- 1 x M.2 2230, E key slot for PCIe Gen 3x1, USB2.0, Intel CNVi module or Wlan-M module
OS SUPPORT
- Windows 11 64 bit OS
- Linux
Remark
- RS232/422/485 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
NET WEIGHT
-NW:1:32kg
Operating Temperature
- 0 ~ 50C
