Vet Portable Multi-parameter Patient Monitor | BMV N6 Vet
Stock Code:
BMV-N6-VET-SK
Stock Code:
BMV-N6-VET-SK-ETCO2
Description

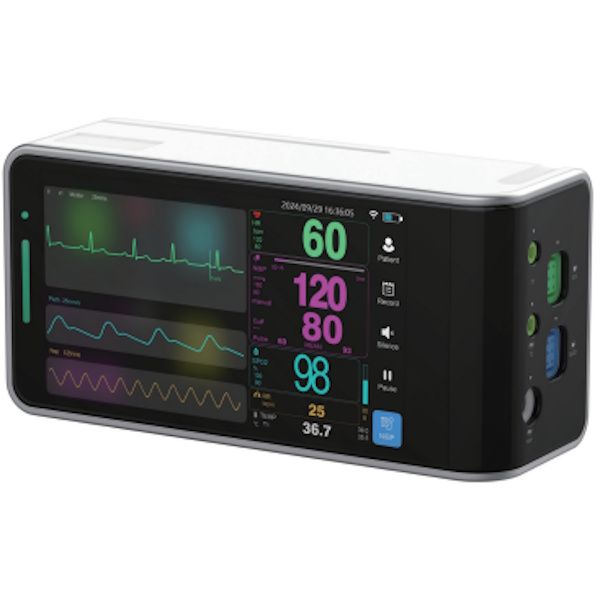

Vet Portable Multi-parameter Patient Monitor | BMV N6 Vet
Full monitoring function that fits into your hand
As a lightweight, rugged transport monitor
Experience seamless monitoring with the N6's extensive parameter set and optional CO2 feature. Achieve the same high-quality monitoring during transport as at the bedside. With the N6, just "grab-and-go" - no cables or adjustments required!
As a versatile surgical or recovery monitor
The N6’s comprehensive monitoring capabilities are enhanced with the addition of multiple screen and configuration options, allowing for in-depth review of critical patient data.
As the core multi-parameter module
At the core of the N-Series platform is the N6 multi-parameter module. Seamlessly integrated into any N-Series monitor, the N6 delivers comprehensive bedside monitoring. Clinicians can trust that all patient data is secure, easily accessible, and complete.
Proven quality, inside and out.
Whether in transport or at the bedside, the N6 is designed to thrive in the toughest clinic or hospital environments, ensuring durability and maximizing your return on investment.
Key Features:
- 5.5 capacitive touchscreen display with multi-gesture control
- Compact, lightweight: 900 gm
- Battery run time of 8 hours (without integrated CO2)
- Flexible transport solution with optional modular CO2
- Innovative design eliminates difficult-to-clean seams and gaps
- Consistent intuitive user interface across N-Series platform
- Comprehensive standard measurements
- Continuous monitoring of ECG(3-Leadwire), SpO2, NIBP, HR/RR, Temperature
- Supports display of up to 5 waveforms
- Serves as the core parameter module for N-Series monitors
- 1.2m drop test endurance
- Multiple mounting solutions including transport module rack with bedrail hooks
Vet Multi-parameter Patient Monitor | BMV N6 Vet
SpO2
- Measuring range: 35%-100%
- Accuracy: ±3%(70-100%)
Pulse Rate
- Measuring range: 30-240 bpm
- Accuracy*: ±2% o r±2 bpm (whichever is greater) *Root-mean-square value of deviation according to ISO 1919
NIBP
- Pressure range: 0-300 mmHg (0-39.9kpa)
- Accuracy: ±3 mmHg
- Measuring range:Systolic pressure:60-240 mmHg
- Diastolic pressure:30-180 mmHg
Power Supply
- Battery:3.7V built-in Li-ion battery -Operating voltage:3.6-4.2 VDC
- Operating current:=800 mA
- Charger:100-240 VAC,50/60 Hz, 5 VDC or USB
Temperature
- Measuring range: 32-43.0?
- Accuracy: ±0.2°C(35-42°C) - ±0.3°C(other)
- Measuring time: <5s
Blood Glucose (Optional)
- Measuring range: 20 to 600 mg/DL
- See other specification at page
ECG
- Heart Rate measuring range: 30-240 bpm
- Heart Rate accuracy: ±2 bpm or ±2% whichever is greater
- Display scale: 5.0 mm/mV±10%
- Common-mode rejection ratio (CMRR): 60 dB
External Power
- Type-C interface, DC 5V, 2A
Battery
- 3.7V ,5250 mAh, 19.43Wh, rechargeable lithium battery.
Working Environment
Temperature range
- Working 0 - 40°C
- Storage - 20 - 50°C
Humidity range
- Working 15% - 90%, no condensation
- Storage 10% - 90%, no condensation

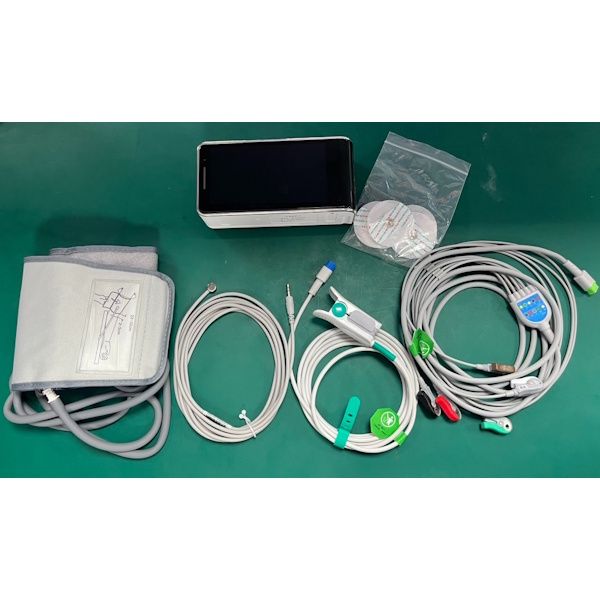

Included in box:
- 1x N6 Main Unit
- 2x ECG cable, 6 pin 3 lead with ECG electrodes
- 2x SpO2 Sensor, 6 pin, reusable SpO2
- 2x NIBP Veterinary Cuff Set of 5
- 1x IBP Cable, L=2m
- 1x Skin temperature sensor
- 1x Endocavity temperature probe
Click here for Warranty Information
