Vet Small Animal DR X-ray System | Value GoDR iRay VenuX Wired System
Stock Code:
GODR-IRAY-VENU-1417X-SA-CEP
Stock Code:
GODR-IRAY-VENU-1717X-SA-CEP
Description
Vet Small Animal DR X-ray System | Value GoDR iRay VenuX Wired System

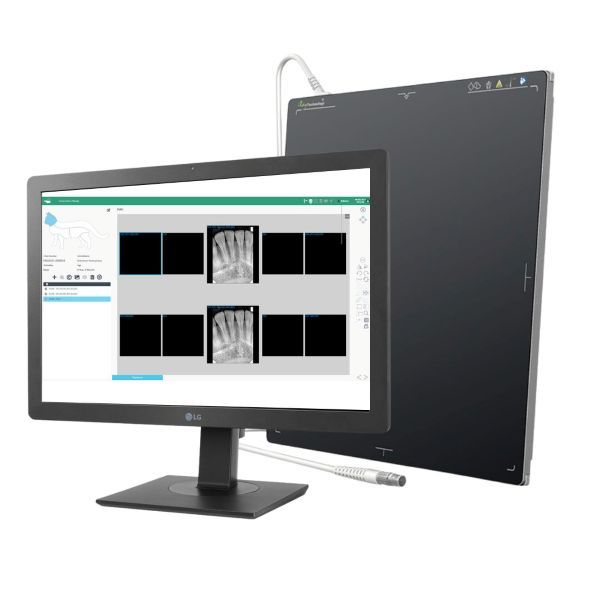

This system has the amazing GoDR software bundled with the iRay Venu 14x17" and 17x17" CsI Flat Panel Detector, along with workstation and screen and everything that you need to make a complete system
GoDR Vet Acquisition Software
GoDR™ is an X-ray image processing and acquisition software developed by SmartCareworks Inc. It is compatible with a wide range of industry leading X-ray detectors and generators.
GoDR™ is the most innovative software to acquire and process digital x-rays images. With veterinary specific features such species and integrated dental option such as tooth picking and full mouth series, all your x-ray capability is in one place. You can easily upgrade your current software to GoDR! You just need to check the compatibility list with us and your done!

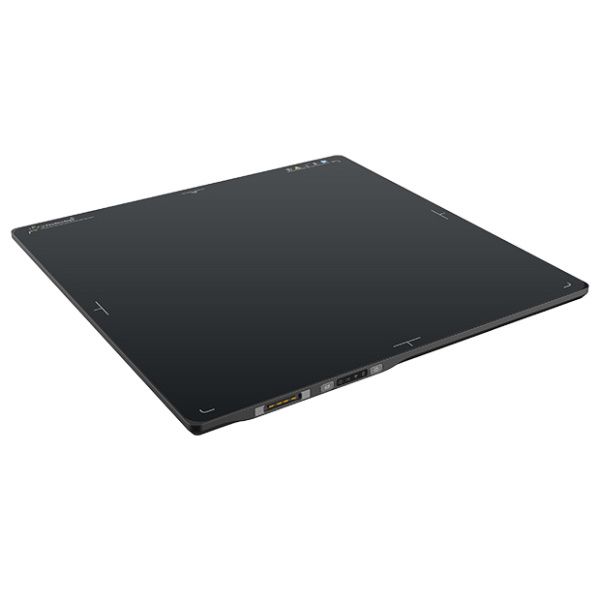

iRay 14x17" or 17x17" High-Performance Cassette-size Wired a-Si Flat Panel Detector
The iRay Venu 14x17" and 17x17 are tethered, cassette-sized flat panel detector for radiographic imaging. They features a 100µm (14x17") or 139µm (17x17") pixel pitch with direct deposition CsI. Cutting-edge technologies include a novel light-weight housing design with IP56 ingress protection, in-tray battery charging, and reliable low power automatic exposure detection (AED). With its exceptional image quality the iRay Venu 1417X and 1717X are excellent choices for DR systems.
Key GoDR Features:
- Vet specific interface
- Vet specific tools such as TTA, TPLO
- Easy procedure mapping allowing common sequences to be easily built
- Integrated dental tooth picker and Full Mouth Series with optional dental scanner
- Full integration with multiple DR Flat Panel Detectors
Key iRay DR Flat Panel Detector Features:
- 100µm (14x17") or 139µm (17x17") pixel pitch with 16-bit ADC for more image detail
- Direct deposition Csl, with excellent DQE at all frequencies
- Full AED control, exposure at any time
- Supports a fast workflow for a better user
- Wireless cassette detector per ISO 4090, fits in bucky experience
- ISO Standard 14x17" or 17x17" size
- Detector Weight 4.0kg
- Lightweight design with IP56 ingress protection
Included in the System:
- GoDR Software
- iRay 14x17" 100µm or 17x17" 139µm Flat Panel Detector
- Medical Grade 24" DICOM Monitor
- Industrial Computer
- Local Backup Drive
- 3m Network Cable
- UPS (Battery Backup)
- Configured and tested ready to go
Vet Small Animal DR X-ray System | Value GoDR iRay Venu Wired System
iRay Venu 1417X or 1717X a-SI Flat Panel Detector
Detector Technology: Amorphous Silicon
Scintillator: CsI
Active Area (inch): 14x17" or 17x17"
Pixel Pitch: 100µm (14x17") or 139µm (17x17")
Spatial Resolution (lp/mm): 4.3 (14x17") or 3.4 (17x17")
AD Conversion (bit): 16
Data Transmission: GigE
Trigger Mode: AED (Optional) / Software
Internal Image Storage(pcs): >100
Full Image Time (s): 3
Physical Specifications
Dimensions: 384x460x15mm (14x17") or 460x460x15mm (17x17")
Weight (kg): 3.3 or 4.0
Static Loading: 300kg
Ingress Protection: IP56
Storage & Operating Temperatures
Operating Temperature (C): 10 ~ 35
Storage & Transport Temperature with Package (C): -20 ~ 60
Operating Humidity (% RH): 5 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH): 5 ~ 95 (Non-Condensing)
ARO i5 Shuttle DR Workstation
- Intel Core i5 Processor
- 16GB RAM
- 500GB SSD main drive + 1TB Image Store + 1TB Backup Hard Drive
- Windows 11 Professional
- Remote Access Support Software
- 24" Medical Monitor, DICOM Grayscale Calibrated
- UPS (Battery Backup)
Note: Specifications subject to change without notice
- 1 Year Return to Base Warranty (Conditions apply)
