Eizo ColorEdge CG247X 24.1" Creative Monitor

Stock Code:
CG247X
$2,937.00 (inc GST)

Downloads

Description

Eizo ColorEdge CG247X 24.1" Creative Monitor


All the features you need for professional video creation.
This 24.1-inch monitor is ideal for post production editing and video creation with precise color management and a range of features included to meet the needs of the media and entertainment industry.

Simple and Precise Colour Management

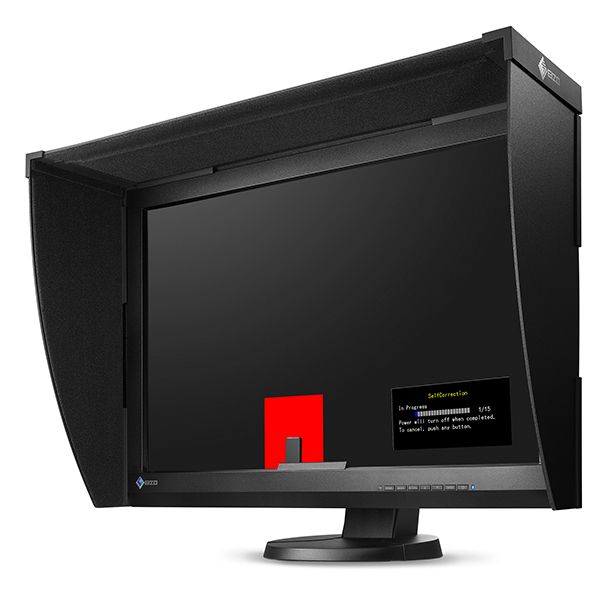

Built-In Sensor to Automate Your Workflow
Automate your calibration with the sensor that is housed within the front bezel. The sensor swings onto the screen only when calibrating, eliminating the need for a third-party calibration device. It even operates while the monitor is in portrait mode.
Using either the OSD menu or the bundled ColorNavigator software, you can schedule the monitor to self-calibrate at specific times. Even if the monitor is switched off or not connected to a computer, it will stick to its preset schedule and self-calibrate.

Correlation with External Sensors
The monitor can be correlated to the measurement results of an external calibration sensor. After correlating, the built-in sensor will automatically recalibrate to the settings. This is convenient if the monitor is used in a work environment with other monitors and one measurement device must be used as a standard for all calibration.

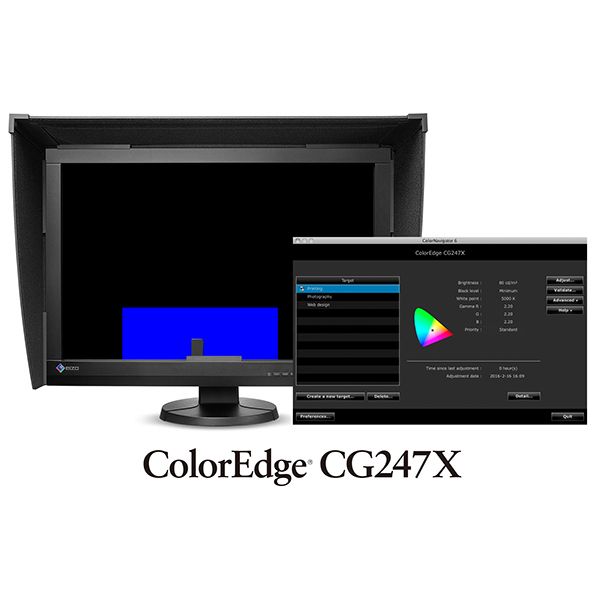

ColorNavigator 7 Colour Management Software
ColorNavigator 7 is the latest calibration and quality control software for ColorEdge colour management monitors. It combines all the features of EIZO's previous colour management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software makes calibration simple and produces predictable results for photography, design, print, and video creation.

ColorNavigator Network Colour Management Software
ColorNavigator Network provides centralized quality control of ColorEdge monitors that have ColorNavigator 7 or NX installed. Administrators can set colour modes, schedule self-calibration, register or adjust asset management settings, and other tasks whether the monitors are local or remote. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.

HDR Gamma Support
EIZO offers optional HLG and PQ curves for many of its current CG Series monitors. The optimized gamma curves render images to appear more true to how the human eye perceives the real world compared to SDR. These products will support the HDR workflow from shooting to colour grading.

Vivid Colours Reproduced to Industry Standards
This wide-gamut monitor faithfully reproduces 98% of the DCI-P3 standard used in digital cinema. Preset modes for EBU, Rec. 709, SMPTE-C, and DCI ensure you can work in the appropriate colour spaces and gamma values. In addition, sRGB and Adobe RGB modes are also included. You can easily switch between presets via a button on the front of the monitor. With the built-in calibration sensor, you can adjust or maintain the brightness setting for each preset.

True Black Display
In compliance with the DCI standard, the ColorEdge CG247X offers a high contrast ratio of 1500:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.

1080/24p Playback
The HDMI input of the CG247X supports a video signal display rate of 1080/24p frames-per-second (fps). This ensures that film shot at 24 fps appears naturally on your screen during the editing process.

I/P Conversion for Flicker-Free Display
The HDMI input of the ColorEdge CG247X supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.

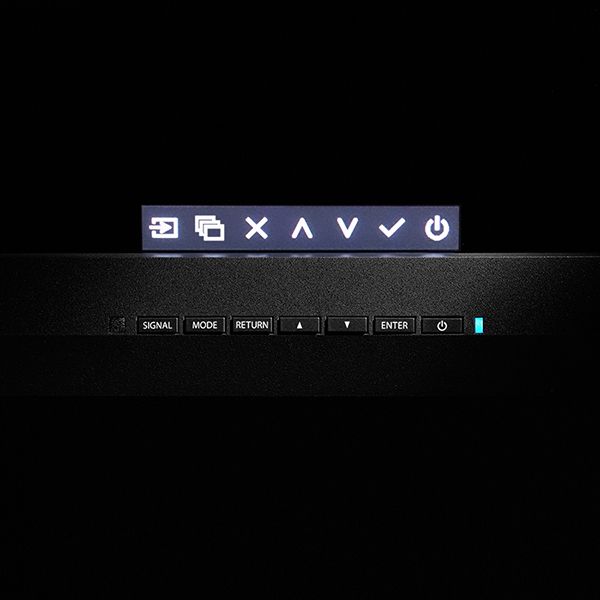

LED Buttons and On-Screen Button Guide
For dimly lit work environments like post production studios, the monitor comes with backlit control buttons and an on-screen button guide to indicate what each button is for.

3D LUT for Accurate Colour Display
A 3D LUT is included which adjusts colours individually on an RGB cubic table. With the bundled ColorNavigator software's emulation function, the 3D LUT applies a film look to the image so creators can check how it will be seen by their audience. The 3D LUT also improves the monitor's additive colour mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.

Safe Area Marker
A safe area marker designates the area of the screen that will be displayed when the monitor is connected to a particular device. This allows you to check that subtitles and other text will be visible. The colour of the marker is changeable to ensure it remains with any imagery.

Features for Accurate and Stable Image Display


Adjusted at the Factory for Smooth Colour Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest colour gradations in your images

10-Bit Simultaneous Display
Using the DisplayPort or HDMI inputs, the ColorEdge CG247X offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colours simultaneously. This is 64 times more colours than you get with 8-bit display, resulting in smooth colour gradations and reduced Delta-E between two adjacent colours.

True Reproducibility
To achieve the most accurate colour display, EIZO developed its own application-specific integrated circuit (ASIC) which is equipped in each ColorEdge monitor. With this ASIC, the gamma level of each monitor is adjusted at the factory to ensure that tones are displayed as intended without colour banding.

Stable Display Technology for Unrivaled ColorEdge Quality
The colour and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time so gradations, colour, brightness, and other characteristics continue to be displayed accurately.

Uniformity Across the Screen
LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting colour accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.

Features for Comfort and Ease-of-Use


Minimized Reflections with Non-Glare Panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.

Multiple Inputs
DisplayPort, HDMI, and DVI-D inputs are included and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once so it is not necessary to reconnect the USB cable when using the ColorNavigator 6 software and switching between computers.

Light-Shielding Hood
The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor's screen caused by ambient lighting. The ColorEdge CG247X's shading hood is newly designed and attaches to the monitor magnetically. This allows the users to attach the hood quickly and easily without needing to connect separate parts.

Ample Screen Size for Creative Work
The ColorEdge CG247X displays two A4 pages plus tool palettes on its 24.1-inch screen at a resolution of 1920 x 1200 to provide you with ample space to work.

Ergonomic Stand for Comfort and Convenience
Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display.

Commitment to Quality


Zero Bright Pixels
EIZO guarantees this product will be free from bright sub-pixels for six months from purchase date for purchases made on September 1, 2015 or later.

Zero Watts When Turned Off
When the monitor is turned off via the power button on its front bezel, it consumes no electricity.

Brightness and Colour Warranty
The brightness and colour of the ColorEdge CG247X is warranted for up to 10,000 hours from the date of purchase. When used at a colour temperature of 5000 - 6500K, a brightness level of at least 120 cd/m2 is warranted.

Certified for Quality and Performance
The monitor has obtained TUV Reinland's Colour Accuracy (Quick Stability grade) certification. Colour Accuracy is the first quality and performance criterion to measure the colour accuracy of display devices for multiple graphics fields such as photography, post production, design, and printing.
It is also recognized by Fogra as a Class A FograCert Softproof Monitor. Using it in a FograCert Softproofing System ensures designers, print specifiers, and print producers can rely on the soft proof for predictable and consistent results.
In addition, the CG247X is the first monitor to receive Idealliance's display-based soft proofing certification which confirms that the colour stability, tone uniformity, and angular viewing consistency meet global industry standards for high quality proofs.

Color Simulation Software
EIZO's UniColor Pro software simulates color blindness when used with select EIZO LCD monitors. It allows designers to see how their printed materials, signs, web contents, videos, etc. will appear to those with color blindness.

Used by Professional Creatives Worldwide
In 2015, EIZO established the ColorEdge Ambassador Program which showcases professional photographers, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world. EIZO's Ambassadors – all of them ColorEdge users – are passionately dedicated to their craft and prepare the best equipment for realizing their creative vision.

Click Here to view Les Walkling's ColorEdge Ambassador Profile

Warranty with Safety and Trust
Click here for Warranty Information

Eizo ColorEdge CG247X 24.1" Creative Monitor


Model Variations:CG2420-BK

Panel
Type: IPS
Backlight: Wide-Gamut LED
Size: 24.1" / 61.1 cm
Native Resolution: 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V): 518.4 x 324.0 mm
Pixel Pitch: 0.270 x 0.270 mm
Pixel Density: 94ppi
Display Colors: DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion
DVI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical): 178°, 178°
Brightness (typical): 400 cd/m2
Recommended Brightness for Calibration 120 cd/m2 or less
Contrast Ratio (typical): 1500:1
Response Time (typical): 10 ms (gray-to-gray)
Color Gamut (typical): Adobe RGB: 99%, DCI-P3: 98%

Video Signals
Input Terminals: DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4)
Digital Scanning Frequency (H / V): DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz

USB
Upstream: USB 3.1 Gen 1: Type-B
Downstream: USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1)

Power
Power Requirements: AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption: 20W
Maximum Power Consumption: 79W
Power Save Mode: 0.7W or less
Standby Mode: 0.6W or less
Built-in Calibration Sensor: Yes

Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: Color Mode (Custom, Adobe RGB, sRGB, Calibration)
OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others: Color Adjustment, SelfCalibration, Input Color Format, Input Range, Noise Reduction, I/P Conversion, Picture Expansion, Menu Rotation, Power Save, Input Skip, Mode Skip, Key Lock, DUE Priority

Physical Specifications
Dimensions (Landscape, W x H x D): 554.4 x 396 - 551 x 245 mm
Dimensions (Portrait, W x H x D): 362 x 565.4 - 647.2 x 245 mm
Dimensions (Without Stand, W x H x D): 554.4 x 362 x 64 mm
Dimensions (Landscape with Hood, W x H x D): 572.4 x 405 - 560 x 336 mm
Net Weight: 7.8 kg / 17.2 lbs
Net Weight (Without Stand): 5.0 kg / 11.0 lbs
Net Weight (With Hood): 8.5 kg / 18.7 lbs
Height Adjustment Range: 155 mm
Tilt: 35° Up, 5° Down
Swivel: 344°
Pivot: 90°
Hole Spacing (VESA Standard): 100 x 100 mm

Environmental Requirements
Operating Temperature: 0 - 35 °C
Operating Humidity (R.H., non condensing): 20 - 80 %

Certifications & Standards (Please contact EIZO for the latest information.):
CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A)

Dedicated Software
Easy Screen-to-Print Color Matching Tool Quick Color Match: Supported

Proprietary Software
Color Management Software ColorNavigator 7: Supported
Color Management Software ColorNavigator 6: Supported

Dedicated Software
Monitor Management Software ColorNavigator NX: Supported

Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DisplayPort (2 m), HDMI (2 m)
Others: AC power cord, USB cable, Setup guide, Adjustment certificate, ScreenCleaner, Monitor hood, Quick reference, Warranty card

Click here for Warranty Information
