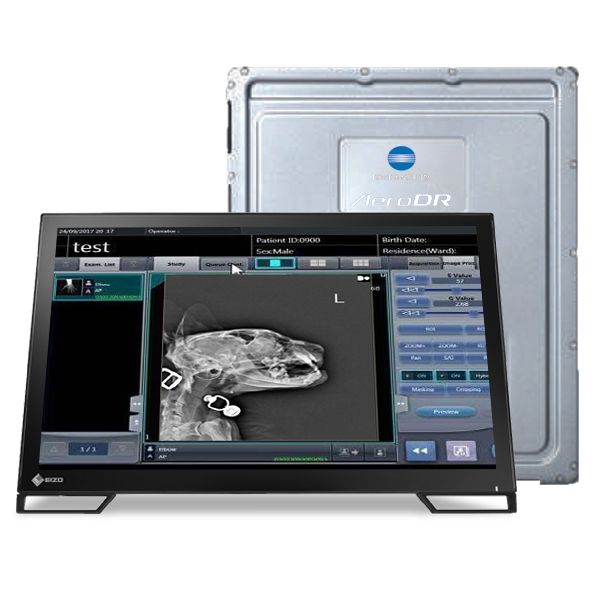

Konica AeroDR3 14x17" Premium HD DR Flat Panel Detector Veterinary System
Stock Code:
KONICA-AERODR3-PREM-HD-SYNC-14X17-VET-SYS
POA
Description
Konica AeroSyncDR3 Premium HD DR Flat Panel Detector Veterinary System including:
This system is setup with a touch screen with optional with wall mount for in clinic configuration. It is a fully touch screen driven interface but can be used with a keyboard and mouse as well. The Konica flat panel detector is incredibly light and robust, with a water resistant rating of IPX6, you can use this panel with confidence for years to come.
Key Features:
- CS7 Acquisition Software with Realism Algorithms customised for veterinary body parts
- Konica AeroSync HD Premium Wireless Flat Panel Detector 14" x 17"
- Konica AeroSync License - will work with an x-ray generator
- 100 Micron resolution
- New DR3 Panel Family with IPX6 Waterproof Rating
- 2.6kg Panel Weight
- Super robust case with no battery port
- Lithium Ion Capacitor Technology built into panel with up to 10,000 charge cycles and 30 minute charging
- 3 minutes on charge dock is enough for 10 x-rays
- DICOM Store, Print
- 24" medical touch screen with acquisition workstation mounted behind (Laptop option available as well)
- 2 Year Warranty
AeroDR Premium HD 14×17 inch flat panel detector
Product Name*2: AeroDR 3 1417HD (P-61)
Detection method: Indirect conversion method
Scintillator: CsI
External dimensions( W×D×H): 384×460×15mm (15.1×18.1×0.6 inches)
Weight: 2.6kg(5.7lb)
Pixel size: 100 / 200 µm
Image area size: 348.8×425.6mm (13.7× 16.8 inches)
AD conversion: 16 bit (65,536 gradients)
Usable grid frequency: 60 / 40 / 34 lp/cm
Communication: Dedicated wired Ethernet connection / Wireless LAN( IEEE802.11a / 802.11n compliant)
W-LAN encryption: Wireless encryption method: AES / Authentication method : WPA2-PSK
Auto Exposure Detection: Available(AeroSync)
Expected product life time: Same as the lifetime of AeroDR 3 1417HD main body
Durability
Point load*3: 180 kg @f40 mm
Face load: 400 kg @ effective image area overall
MIL-STD: MIL-STD-810G
Water resistance*4: IPX6 including power cell
Cycle Time*5:
100 µm
- Approx. 6s with dedicated wired connection
- Approx. 7s with wireless LAN connection
200 µm
- Approx. 4s with dedicated wired connection
- Approx. 4s with wireless LAN connection
Battery performance
Operating time*6: Approx. 309 images/8.6 h
(200 µm with wireless LAN connection): *Assuming that the AeroDR system is connected to an X-ray system, the interval between studies is 5 min, and three image s are captured in each study, and assuming 20s for each exposure to position the patient.
Charging time empty to full: Within 30 min
Maximum stand by time*7: Approx. 13 h
*1 AeroDR SYSTEM 3 is the commercial product name of SKR 3000.
*2 AeroDR 3 1417HD / AeroDR 3 1717HD / AeroDR 3 1012HQ is the commercial name of P-61 / P-71 / P-81 of SKR3000. With regard to t he tested values listed above, measurement methods follow KonicaMinolta standards. system
*3 Dead loading does not affect the processed image or panel. Robustness against loading of the AeroDR 3 1417HD / AeroDR 3 1717HD / AeroDR 3 1012HQ does not provide any guarantees against damage or breakage.
*4 The water resistance performance of AeroDR 3 1417HD / AeroDR 3 1717HD / AeroDR 3 1012HQ does not provide any guarantees of perfect water resistance, nor that it cannot be damaged or broken.
*5 Specifications may vary depending on system configuration or environment. The specifications described above assume that AeroDR 3 1417HD / AeroDR 3 1717HD / AeroDR 3 1012HQ is connected to an X-ray generator.
*6 The specifications assume that 3 exposures are taken within one study and that the time between studies is 5 min. They also assume that it takes 20s to position the patient. This also assumes that the AeroDR 3 1417HD / AeroDR 3 1717HD / AeroDR 3 1012HQ is linked to an X-ray generator and is also connected to a CS-7 image processing workstation.
*7 The specifications described above are based on a full battery charge and may vary depending on system configuration and environment.
Recommended storage and usage environment conditions
When operating:
(Temperature) 10 to 35? (30 to 95?)
(Humidity) 35 to 80% (ensure no water condensation)
(Atmospheric pressure) 700 to 1060 hPa
When not operating:
(Temperature) -10 to 40C (14 to 104F)
(Humidity) 20 to 90% (ensure no water condensation)
(Atmospheric pressure) 700 to 1060 hPa
In storage / transport:
(Temperature) -20 to 50C (-4 to122F)
(Humidity) 20 to 90% (ensure no water condensation)
(Atmospheric pressure) 700 to 1060 hPa
* Performance warranty period when storing at 50? is 6 months after packing.
Eizo Radiforce MS236 23" 2MP Multi-Touch
Cabinet Colour: Black
Panel
Type: Color (IPS)
Backlight: LED
Size: 58 cm / 23.0"
Native Resolution: 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V): 509.2 x 286.4 mm
Pixel Pitch: 0.265 x 0.265 mm
Display Colors: 8-bit colors: 16.77 million from a palette of 1.06 billion colors
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 260 cd/m2
Contrast Ratio (typical): 1000:1
Response Time (typical): 11 ms (midtone)
Touch Panel
Type: Projected Capacitive
Communication Protocol: USB
Touch Life: 50 million touches (minimum)
Surface Hardness: 5 H
Compatible OS: Windows 10 (64-bit, 32-bit) / Windows 8.1 (64-bit, 32-bit) / Windows 7 (64-bit, 32-bit)
Video Signals
Input Terminals: DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V): DVI: 31 - 64 kHz / 59 - 61 Hz (VGA Text: 69 - 71 Hz)
DisplayPort: 31 - 68 kHz / 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V): 31 - 81 kHz / 55 - 76 Hz
Sync Formats: Separate
USB
Upstream: USB 2.0 - Type-B
Downstream: USB 2.0 - Type-A x 2
Audio
Speakers: 1.0 W + 1.0 W
Input Terminals: 3.5 mm stereo jack, DisplayPort
Output Terminals: 3.5 mm headphone jack
Sound Adjustment: Volume, Source (DisplayPort)
Power
Power Requirements: AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption: 42 W
Typical Power Consumption: 19 W
Power Save Mode: 0.7 W or less
Features & Functions
Preset Modes: Color Mode (User1, User2, sRGB, DICOM)
OSD Languages: English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese
Physical Specifications
Net Weight: 6.6 kg
Net Weight (Without Stand): 6 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Standards Met
Certifications & Standards (Please contact EIZO for the latest information.): CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DVI-D (3 m), DisplayPort (3 m)
Others: AC power cord (3 m), USB cable (3 m), audio cable (2.1 m), touch pen, holder for touch pen, Utility Disk (user's manual, touch panel driver, TPOffset), cleaning cloth, mask sheet
Warranty: Five Years
