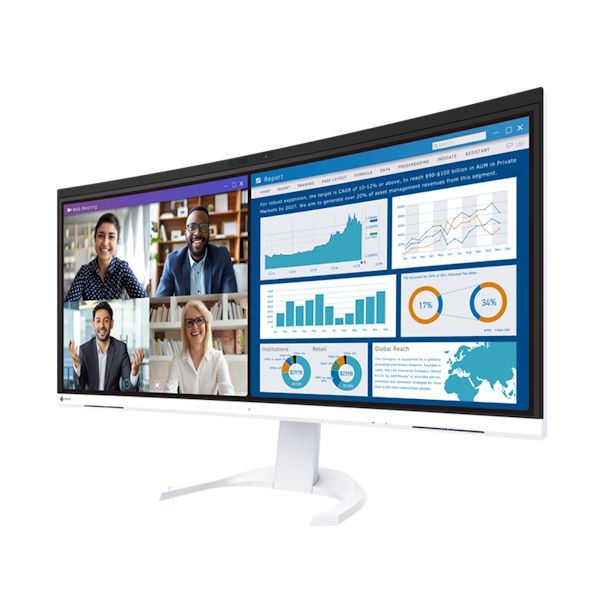

Eizo FlexScan EV3450XC Color LCD Monitor
Description
Eizo FlexScan EV3450XC Color LCD Monitor
Connect. Communicate. Collaborate.
The 34.1-inch EV3450XC is EIZO's first monitor with a built-in webcam and microphone. Combined with USB Type-C docking and LAN capabilities, this ultrawide UWQHD (3440 x 1440) curved monitor offers streamlined viewing and communication for the modern business professional.
Bring the Conference to Your Desk - EIZO's First Monitor with a Webcam and Microphone
Discreet Built-In Webcam and Mic
The monitor's webcam and microphone are discreetly integrated into the bezel to blend in with your workspace. High-performance video and audio capabilities make it easy to communicate with colleagues - no matter where you are!
Make a Great Impression in Your Web Meeting
The integrated 5 megapixel webcam offers more than twice the resolution of Full HD to ensure high-definition, natural color image capture for a vibrant web meeting experience. The monitor supports Windows Hello, which lets you quickly unlock your PC with facial recognition, streamlining password-free access while maintaining security.
Noise Cancelation for Clear Discussions
The built-in microphone has a noise-canceling function that reduces unwanted background noise. It also has an echo-canceling function that identifies and removes sounds coming from the monitor's internal speakers to prevent feedback. This ensures that your voice is heard clearly during web meetings.
Stereo Speakers that are Barely There
The monitor's minimalist front bezel houses two 4-watt stereo speakers. Audio is clear whether the monitor is being used by an individual or by several people in a conference room.
Contoured to Your Workstyle with an Ultrawide, Curved Screen Get Connected. Get Started.
More Space, Seamless Viewing
The EV3450XC is a 34.1-inch ultrawide, curved monitor with UWQHD resolution (3440 x 1440 pixels) and a 21:9 aspect ratio. Offering 2.4 times the resolution of Full HD (1920 x 1080 pixels) monitors, it provides an expanded workspace for flexible arrangement of multiple applications without the obtrusive bezels characteristic of multi-monitor setups.
See Everything at a Comfortable Distance
The closer a user sits to a large monitor, the greater the distance between their eyes and the far edges of the screen. A curved monitor gently brings those edges in to a more comfortable distance, improving visibility, focus, and immersion.
Convenient Multi-Input Connection
The Picture-by-Picture (PbyP) function allows the monitor to receive and display two video signals simultaneously. This saves the time and hassle of switching between signal sources when operating more than one computer. The monitor comes with three predefined Picture-by-Picture layouts.
USB Functionality
The monitor features USB Type-C® connectivity that allows you display video, playback audio, transmit USB signals, supply power to connected PCs, and even transmit a network signal. This convenient, multi-purpose connection makes it faster and easier to connect your laptop when working remotely.
Power Delivery
The 94 watt power delivery via USB Type-C reliably charges laptops or small desktop PCs. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on your desk.
Stable Network Connection
While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct conference calls or data transfers reliably and at high speed.
EIZO MAC Address Clone Utility software temporarily assigns the MAC address of a connected PC to the monitor, granting network access to authenticated devices, and preventing network access from unauthenticated devices.
Directly Connect Peripherals
While many modern laptops are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a laptop to the monitor via USB Type-C provides access to a hub with two USB Type-A ports and one USB Type-C port for easily connecting an external keyboard, mouse, or storage device.
Click here for Warranty Information
Eizo FlexScan EV3450XC Color LCD Monitor
Model Variations
EV3450XC-BK: with FlexStand, black
EV3450XC-WT: with FlexStand, white
EV3450XC-FBK: without stand, black
EV3450XC-FWT: without stand, white
Note: FlexStand is removable
Panel
Type: IPS
Backlight: LED
Size: 34.1" (86.7 cm)
Native Resolution: 3440 x 1440 (21:9 aspect ratio)
Viewable Image Size (H x V): 799.8 x 334.8 mm
Pixel Pitch (H x V): 0.233 x 0.233 mm
Pixel Density: 109 ppi
Display Colors: 16.77 million
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 300 cd/m2
Contrast Ratio (typical): 1000:1
Response Time (typical): 5 ms (gray-to-gray)
Color Gamut (typical): sr gb
Video Signals
Input Terminals: USB Type-C (DisplayPort Alt Mode, HDCP 2.3 / 1.3), DisplayPort (HDCP 2.3 / 1.3), HDMI (HDCP 2.3 / 1.4) x 2
Digital Scanning Frequency (H / V): USB Type-C: 31 - 89.5 kHz / 29.5 - 61 Hz
DisplayPort: 31 - 89.5 kHz / 29.5 - 61 Hz
HDMI: 31 - 89.5 kHz / 29.5 - 61 Hz
USB
Upstream: USB 5Gbps: Type-B, USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.)
Downstream: USB 5Gbps: Type-A x 2, USB 5Gbps: Type-C (Type-C Current, 15 W max.)
USB LAN Adapter: RJ-45 (1000BASE-T), Windows 11, Windows 10 (64-bit, 32-bit), macOS Sierra (10.12) or later
Audio
Speakers: 4.0 W + 4.0 W
Input Terminals: USB Type-C, DisplayPort, HDMI x 2
Output Terminals: Headphones (Stereo mini jack)
Power
Power Input: AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption: 23 W
Maximum Power Consumption: 222 W
Power Save Mode 0.4 W
Features & Functions
Web cam: 5 megapixel, built-in microphone, Windows Hello supported
Preset Modes: User1, User2, sRGB, Paper, Movie, DICOM
Simultaneous Display: Picture by Picture (2 PbyP)
Automatic Brightness Control: Auto EcoView
OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D): 819.5 x 414.5 - 609.5 x 242 - 250 mm
Dimensions (Without Stand, W x H x D): 819.5 x 385 x 103.1 mm
Net Weight: 12.1 kg
Net Weight (Without Stand): 9.2 kg
Height Adjustment Range: 195 mm
Tilt: 35° Up, 5° Down
Swivel: 90°
Hole Spacing (VESA Standard): 100 x 100 mm
Environmental Requirements
Operating Temperature: 5 - 35°C
Operating Humidity (R.H., non condensing): 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.): TCO Certified, generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Dedicated Software
Monitor Control Utility Screen in style: Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: USB Type-C (2 m), DisplayPort (2 m)
Others: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), connector cover, setup guide
Warranty: 5 Years, Zero bright sub-pixels for six months from date of purchase.
