Eizo Duravision 23" Touch Panel

Stock Code:
FDF2382WT
POA

Description

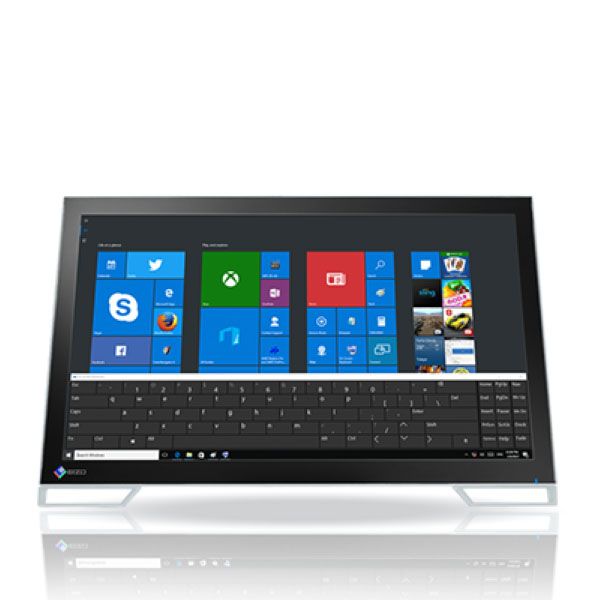

Duravision FDF2382WT Touch Panel


Projected Capacitive Touch Panel
The DuraVision FDF2382WT features projected capacitive touch technology which is more durable and reliable compared to other touch technologies. The monitor accepts touch input from a bare finger or dedicated stylus.

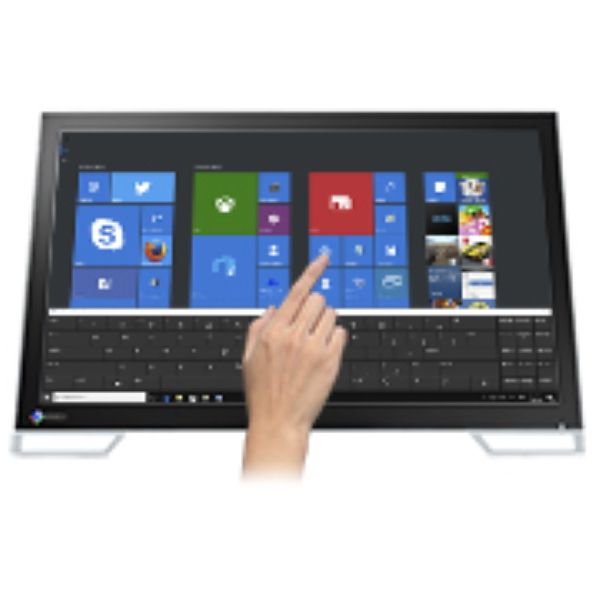

Multitouch Interface
The screen can detect up to 10 simultaneous touches so you can easily operate a variety of applications in almost any environment. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.

Touch Detection Control
Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side.

Sensitivity Calibration
The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch reponse due to environmental factors and electromagenetic noise. This ensures that the screen maintains accurate touch interaction during use.

Stylus Compatibility
The monitor can be used with a touch stylus for smooth writing.

Features for Ease of Use


Fully Flat Design
The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling a breeze.

IPS Panel
The DuraVision FDF2382WT uses an LED-backlit IPS panel with wide viewing angles that minimize color shift and contrast changes when viewing the screen from the side. The surface of the panel is also coated with an anti-glare treatement for further clarity in bright ambient environments.

Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The DuraVision FDF2382WT relieves eye fatigue by regulating brightness to make flicker unperceivable.

Reclining Stand
The equipped stand provides flexible positioning to allow the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.

Additional Features


Complete Connection
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.

High Durability
The touch screen has a non-scratch surface made of reinforced glass with a hardness of 5H (Mohs scale), making it durable enough to withstand long-term use in a range of environments.

Long-Term Reliability
The DuraVision FDF2382WT is backed by a three year warranty which covers all components to ensure a long service life.

Warranty with Safety and Trust
Click here for Warranty Information

Duravision FDF2382WT Touch Panel


Model Variations
FDF2382WT-LGY: with Laidback stand, gray
FDF2382WT-LBK: with LaidBack stand, black
FDF2382WT-FGY: without stand, gray
FDF2382WT-FBK: without stand, black

Panel
Type: IPS
Backlight: LED
Size: 23" / 58 cm
Native Resolution: 1920 x 1080 (16 : 9 aspect ratio)
Viewable Image Size (H x V): 509.2 x 286.4 mm
Pixel Pitch: 0.265 x 0.265 mm
Display Colours: 16.77 million from a palette of 1.06 billion
Viewing Angles (H / V, typical): 178°, 178°
Brightness (typical): 260 cd/m2
Contrast Ratio (typical): 1000:1
Response Time (typical): 11 ms (Gray to gray)

Touch Panel
Type: Projected Capacitive
Touch Points: 10
Surface Treatment: Anti-Glare coating
Communication Protocol: USB
Touch Life: 50 million touches (minimum)
Surface Hardness: 5H
Compatible OS: Windows 10 / 8.1 / 7 (64-bit, 32-bit)

Video Signals
Input Terminals: DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin
Analog Scanning Frequency (H / V): 31 - 81 kHz, 55 - 76 Hz
Sync Formats: Separate

USB
Upstream: USB 2.0: Type-B
Downstream: USB 2.0: Type-A x 2

Audio
Speakers: 1.0 W + 1.0 W
Input Terminals: Stereo mini jack, DisplayPort
Output Terminals: Headphones (Stereo mini jack)

Power
Power Requirements: AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption: 14 W
Maximum Power Consumption: 42 W
Power Save Mode: 0.7 W or less
Standby Mode: 0.7 W or less

Features & Functions
Preset Modes: Color Mode (User1, User2, sRGB)
OSD Languages: English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
Others: Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset

Physical Specifications
Dimensions (Landscape, W x H x D): 556.7 x 143.9 - 353.9 x 216.3 - 401.3 mm
Dimensions (Without Stand, W x H x D): 556.7 x 339.2 x 54 mm
Net Weight: 6.6 kg / 14.5 lbs
Net Weight (Without Stand): 6 kg / 13.2 lbs
Tilt: 15° - 70°
Hole Spacing (VESA Standard): 100 x 100 mm, M4, screw depth 3.0 - 9.5 mm

Environmental Requirements
Operating Temperature: 5 - 35 °C
Operating Humidity (R.H., non condensing): 20 - 80 %

Certifications & Standards (Please contact EIZO for the latest information.):
CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS

Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DisplayPort (2 m), DVI-D (2 m)
Others: AC power cord (2m), USB cable (1.8m), Audio cable (2.1m), Cleaning cloth, CD-ROM (PDF user's manual, Touch panel driver, TPOffset), Mask Sheet, Setup guide
