Ecotron EPX-F1600 1.6kW Portable X-Ray Generator

Stock Code:
EPX-F1600
Login For Price
$11,033.00 (inc GST)

Downloads

Description

Ecotron EPX-F1600 1.6kW Portable X-Ray Generator

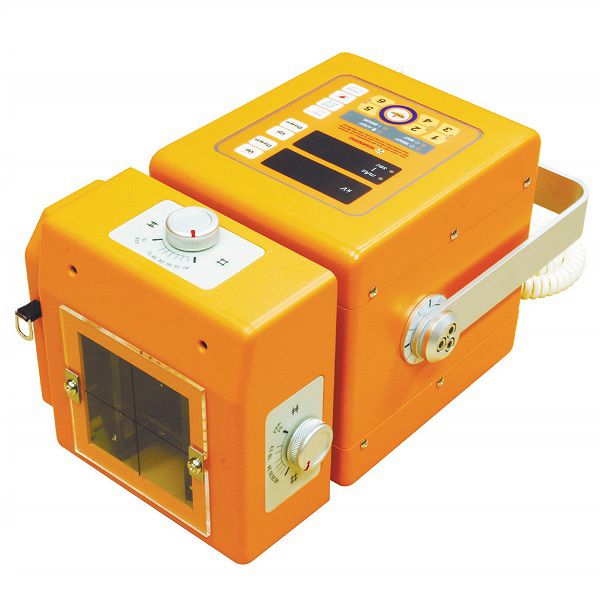

The EPX-F1600 is compact portable x-ray generator suitable for veterinary mobile use, weighing in at only 6.8kG and with 90kV and 30mA range puts it ahead of most of the competition in this weigh range.

Key Features:
- Provide high resolution imaging at lower dosages.
- Durable design with solid body.
- Soft Touch Controls with Digital displays.

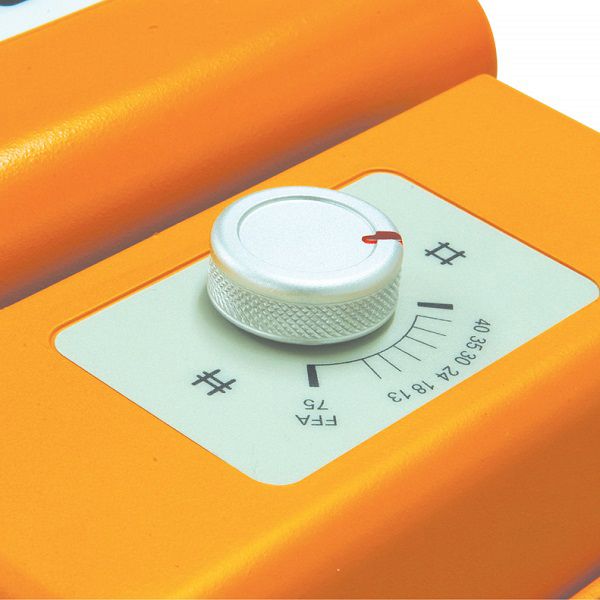

- Calibrated cassette size indicator dials
- Available with Inverted control panel for table use.
- Two stage dynamic, Auto line compensation.
- Easy access to DR systems.
- Dual Integrated Laser Pointer.
- Wired handswitch
- 6 metre power cord
- Wireless/Wire PC interface(Optional)
- EMS-1000 or EMS-H Stand (Optional)
- Podoblock Stat-X Stand Range (Optional)
- Podoblock JiXtr Portable X-Ray Generator(Optional)

Click here for Warranty Information

Ecotron EPX-F1600 1.6kW Portable X-Ray Generator


- Maximum Output Power: 1.6kW
- Generator Frequency: 100kHz
- kV Range: 40-90kV in 1kV steps
- mA Range: 12-30mA
- mAs Range: 0.4-100mAs
- Focal Spot: 1.2mm x 1.2mm
- Target Angle: 19 Deg
- Anode Heat Storage: 10kHU
- Input Voltage: 110V/230V
- Phase/Frequency: Single/50-60Hz
- Dimensions: 335x153x170mm
- Machine Weight: 6.8kG
- Shipping Weight: 20kG
