Ecotron EPX-F5000 5.0kW Portable X-Ray Generator

Stock Code:
EPX-F5000
POA

Downloads

Description

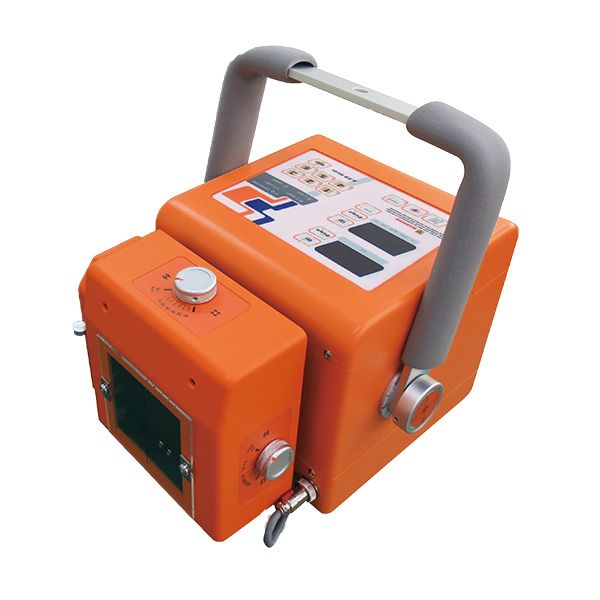

Ecotron EPX-F5000 Portable X-Ray Generator


The EPX-F5000 is compact portable x-ray generator suitable for mobile use, weighing in at only 13kG and with 110kV and 100mA range puts it ahead of most of the competition in this weight range.

Key Features:
- Provide high resolution imaging at lower dosages.
- Durable design with solid body.

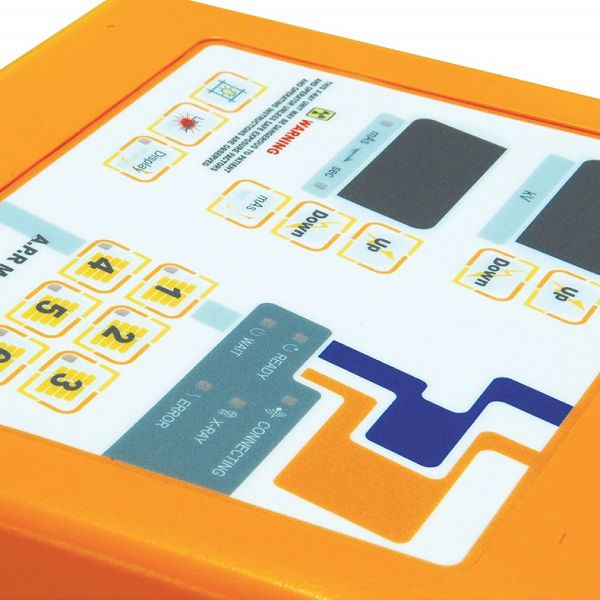

- Soft Touch Controls with Digital displays.

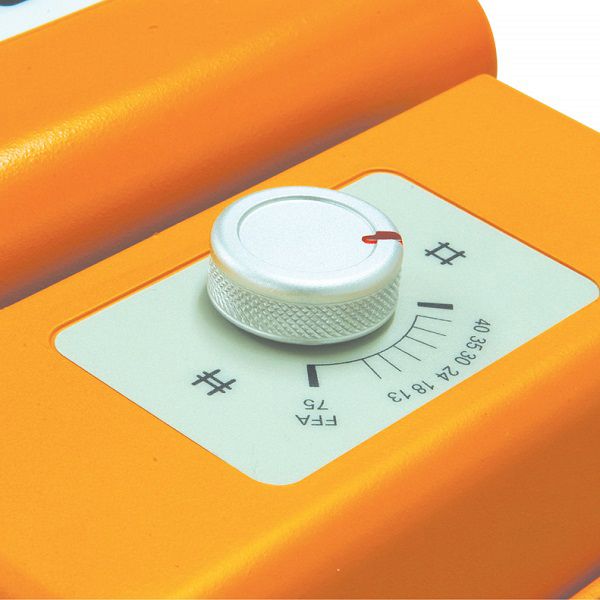

- Calibrated cassette size indicator dials
- Available with Inverted control panel for table use.
- Two stage dynamic, Auto line compensation.
- Easy access to DR systems.
- Dual Integrated Laser Pointer.
- Wired handswitch
- 6 metre power cord
- Wireless/Wire PC interface(Optional)
- EMS-1000 or EMS-H Stand (Optional)
- Podoblock Stat-X Stand Range (Optional)
- Podoblock JiXtr Portable X-Ray Generator(Optional)

Click here for Warranty Information

Ecotron EPX-F5000 Portable X-Ray Generator


- Output Power: 5 KW
- Input Voltage: 200V-264V
- Phase & Frequency: Single / 50/60 Hz
- kV Range: 50-110kV/1kV step
- mA Range: 20-100mA
- mAs Range: 0.4-100mAs
- Display: KV / mAs / Sec: 7-segment LED type
- X-Ray Tube Focal Spot: 1.8mmx1.8mm
- X-Ray Tube Target Angle: 15 degree
- X-Ray Tube Anode Heat Storage: 30000J
- Collimator Type: Double slit type, manually operation
- Min X-ray Field Size: 5cm x 5cm @1m SID
- Max X-ray Field Size: 40cm x 40cm @ 75cm SID
- Laser Pointer Class : VA 5mW
- Timer: Push button illuminator with 30 sec timer
- Lamp: 24V 50W Halogen
- Size: 360x200x190mm
- Weight: 13kg
- Shipping Weight: 22kg

Note: Does not include radiation certification certificates or approvals.
