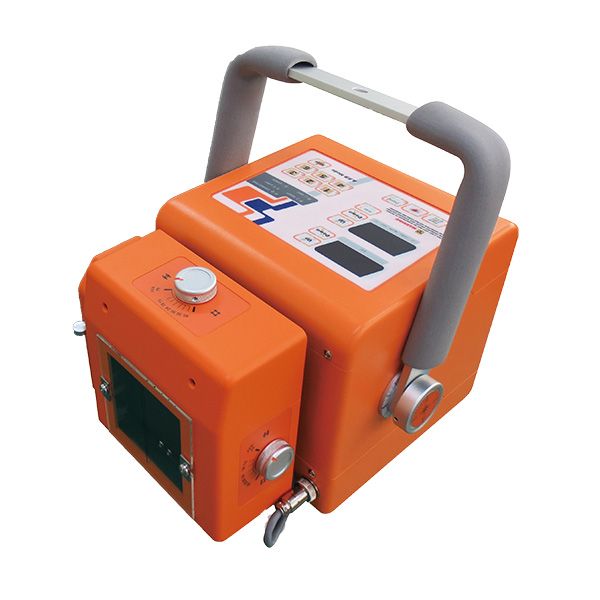

Ecotron EPX-F3200 3.2kW Portable X-Ray Generator
The EPX-F3200 is compact portable x-ray generator suitable for veterinary mobile use, weighing in at only 12kG and with 100kV and 60mA range puts it ahead of most of the competition in this weight range.
- Provide high resolution imaging at lower dosages.
- Durable design with solid body.

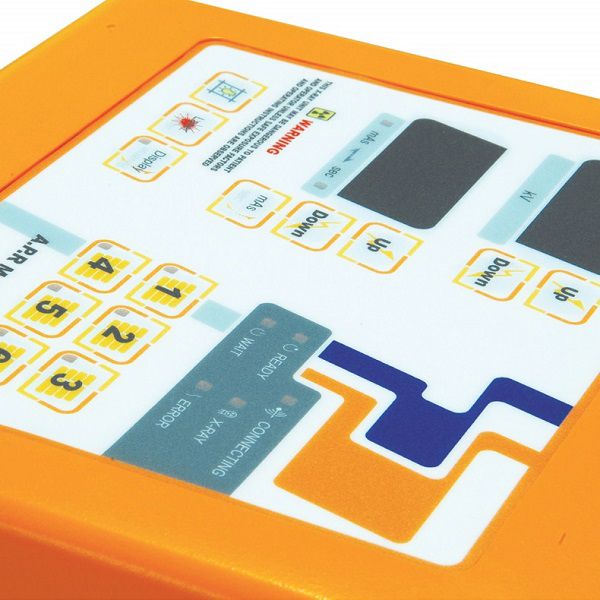

- Soft Touch Controls with Digital displays.

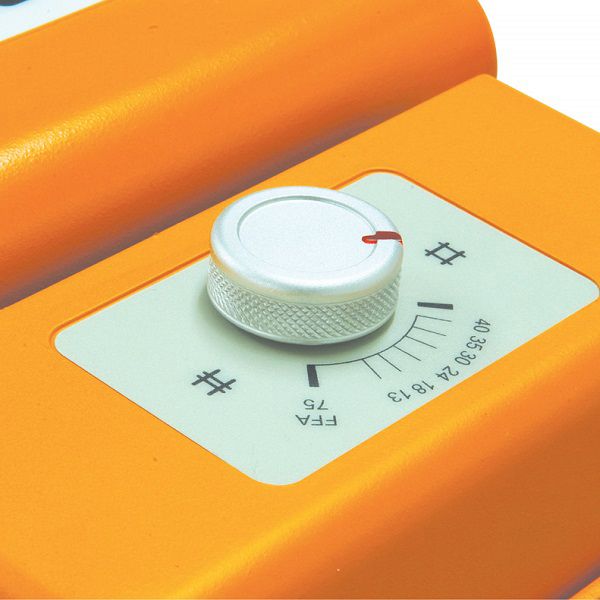

- Calibrated cassette size indicator dials
- Available with Inverted control panel for table use.
- Two stage dynamic, Auto line compensation.
- Easy access to DR systems.
- Dual Integrated Laser Pointer.
- Wired handswitch
- 6 metre power cord
- Wireless/Wire PC interface(Option)
- Maximum Output Power: 3.2kW
- Generator Frequency: 70kHz
- kV Range: 40-100kV in 1kV steps
- mA Range: 12-60mA
- mAs Range: 0.4-100mAs
- Focal Spot: 2.0mm x 2.0mm
- Target Angle: 16 Deg
- Anode Heat Storage: 40kHU
- Input Voltage: 200-240VAC
- Phase/Frequency: Single/50-60Hz
- Dimensions: 360x200x190mm
- Machine Weight: 12kG
- Shipping Weight: 22kG
